As a leading manufacturer in this field, XINYI MACHINERY can provide a definitive answer: For a complete and efficient PET bottle recycling system, you need both a shredder and a crusher, but they perform different jobs at different stages.
Calling one "better" is like asking if a tractor is better than a combine harvester on a farm—they are complementary tools for different tasks.
Here is a detailed breakdown to help you understand the roles of each machine in the PET bottle recycling process.
The Short Answer

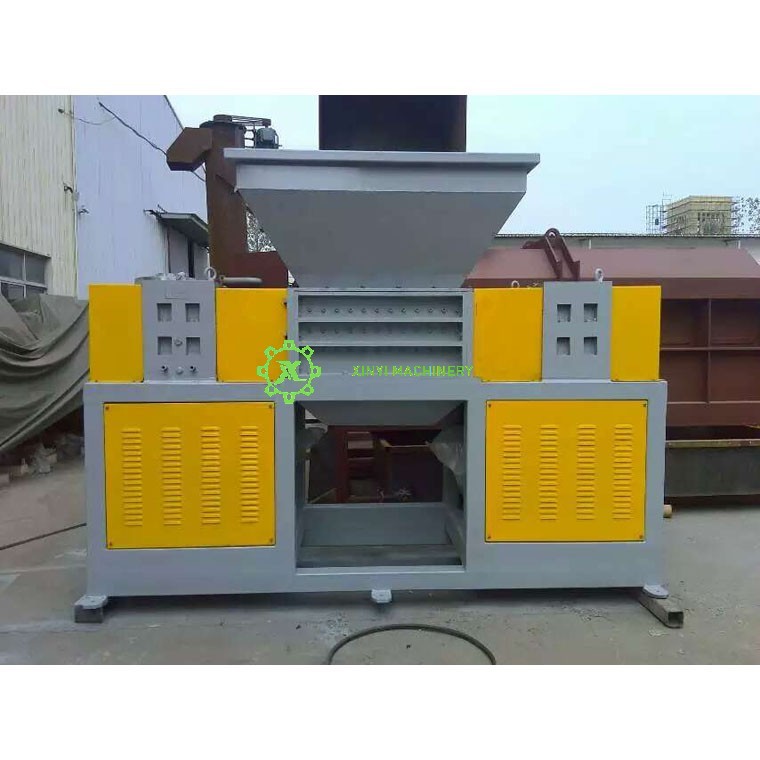

· Plastic Shredder (Coarse Size Reduction): Used first to roughly break down whole, baled PET bottles into small, uniform flakes (20mm-50mm). It is a heavy-duty machine designed for high volume and preparing material for washing.

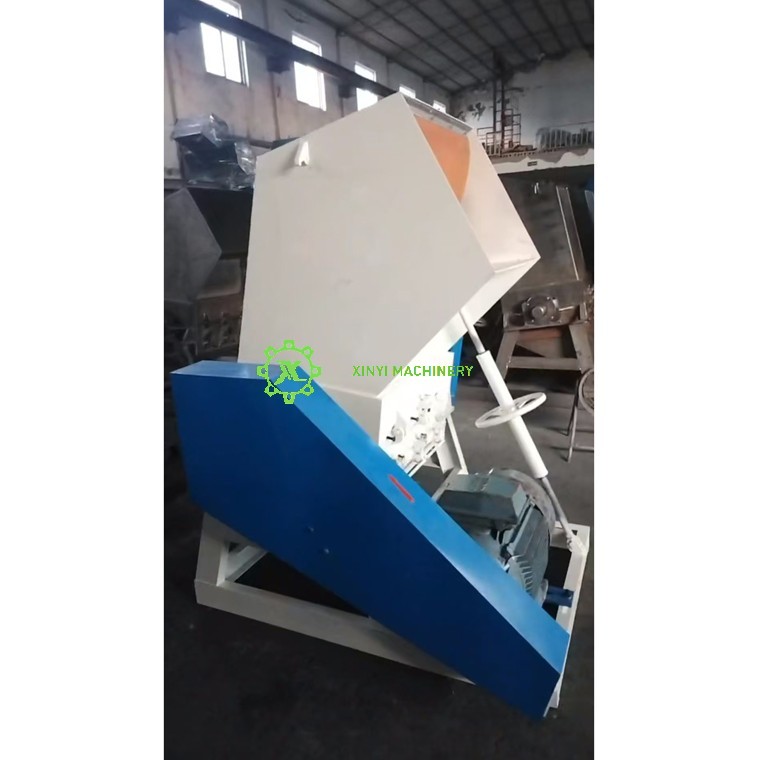

· Plastic Crusher / Grinder (Fine Size Reduction): Used after the washing line to finely grind the clean, wet flakes into smaller, consistent flakes (8mm-15mm) suitable for making high-quality pellets.
A typical PET bottle recycling line flows like this:
Whole/Baled PET Bottles -> Shredder -> Hot Washer -> Label Remover -> Crusher/Grinder (for final sizing) -> Dehydration -> Drying -> Pelletizing
Detailed Comparison: Shredder vs. Crusher for PET Bottles
Feature | Plastic Shredder | Plastic Crusher (Granulator) |
Primary Function | Coarse, primary size reduction. Breaks down large, whole, or baled items. | Fine, secondary size reduction. Precisely cuts pre-cut flakes into smaller, uniform pieces. |

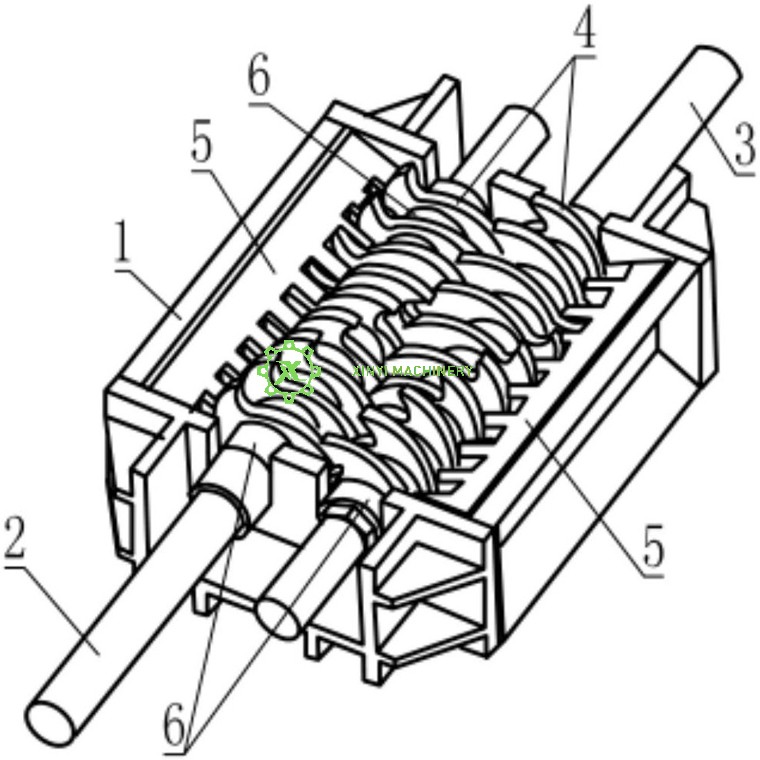

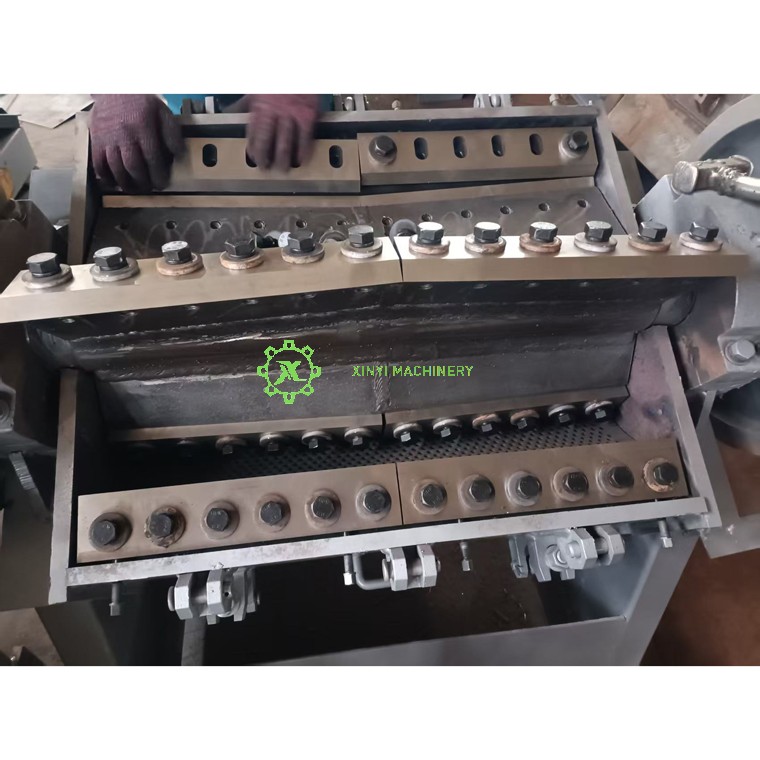

Operation Principle | Uses slow-speed, high-torque rotary shear blades to "tear" and "rip" the material. | Uses high-speed rotary knives working against a stationary bed knife to "shear" and "cut" the material. |
Input Material | Whole, uncrushed PET bottles (loose or in bales). | Pre-shredded, washed PET flakes. |
Output Size | Larger, irregular strips or flakes (typically 20-50mm). | Smaller, more consistent, and clean flakes (typically 8-15mm). |
Key Advantages | - Handles whole bottles and dense bales effortlessly. | - Produces uniform, clean flakes essential for high-quality pelletizing. |
Ideal Placement in Line | At the very beginning (pre-washing). | After the washing and drying stages (post-washing). |
Why It's Needed for PET | You cannot feed whole bottles into a washer or a crusher. The shredder creates the initial surface area needed for effective cleaning and label removal. | After washing, the flakes are still too large for efficient pelletizing. The crusher creates the final, uniform "regrind" that melts evenly in the extruder. |
Scenario Analysis: Which One Should You Choose?
The choice isn't "which one," but "in what order do you need them?"
1. If you are setting up a full PET bottle recycling line:
You need both. The shredder is your primary size reducer, and the crusher/granulator is your final precision grinder. This two-step process is the industry standard for achieving high-purity, high-value rPET (recycled PET) flakes and pellets.
2. If you are only doing pre-processing (collecting, baling, and selling washed flakes):
Your primary need is a Plastic Shredder. You will use it to break the bales into flakes that you then wash and sell. The quality of the flake from a shredder is sufficient for this market.
3. If you are buying pre-washed flakes to make pellets:
Your primary need is a Plastic Crusher/Granulator. You would use it to ensure the incoming washed flakes are of a perfectly uniform small size before they enter your pelletizing extruder, maximizing the quality and output of your final product.
The XINYI MACHINERY Advantage
As a comprehensive manufacturer of both machines, XINYI MACHINERY can provide the ideal solution for your specific stage in the PET recycling process. Our expertise ensures that our machines are built with the right blade geometry, rotor design, and screen configurations to handle PET material efficiently, minimizing energy consumption and maximizing the yield of high-quality material.
In conclusion, don't think of it as a choice between a shredder and a crusher. Think of them as a powerful team. The shredder is the brute force that gets the job started, and the crusher is the skilled artisan that puts on the final, perfect finish.
For a consultation on the best machine or complete line for your PET recycling needs, please feel free to contact XINYI MACHINERY directly. We can help you design the most efficient and profitable system.
