What Are Plastic Crusher Machine Blades?

Plastic crusher machine blades are the essential, high-wear components inside a plastic crusher or grinder that are responsible for cutting, shearing, and shredding plastic materials into smaller pieces. They are the "teeth" of the machine, directly interacting with the plastic feedstock to achieve size reduction.

Their primary purpose is to prepare plastic scrap for recycling by creating uniform-sized flakes or granules that can be easily washed, dried, and remelted in the production of new plastic products.

Key Characteristics and Components

1. Extreme Hardness and Wear Resistance: These blades are subjected to constant friction and abrasion from plastic materials, which can often contain fillers like glass fiber or minerals. They are heat-treated to a high hardness (typically HRC 58-62 or higher) to maintain a sharp edge for as long as possible.

2. High Toughness and Impact Resistance: Blades must be tough enough to withstand sudden impacts from hard materials, thick plastic sections, or potential foreign objects (like metals or stones) that might accidentally enter the crusher, preventing chipping or breaking.

3. Precision Engineering: The blades are not simple pieces of metal. They are precision-machined to exact dimensions to ensure a perfect fit within the rotor assembly. The angles of the cutting edge (the "hook" or "shear angle") are critically designed for efficient cutting and low energy consumption.

4. Corrosion Resistance: While not always stainless, the steel used often has properties to resist rust, especially since some plastics or washing processes can involve water or corrosive agents.

A standard set of crusher blades consists of two main parts:

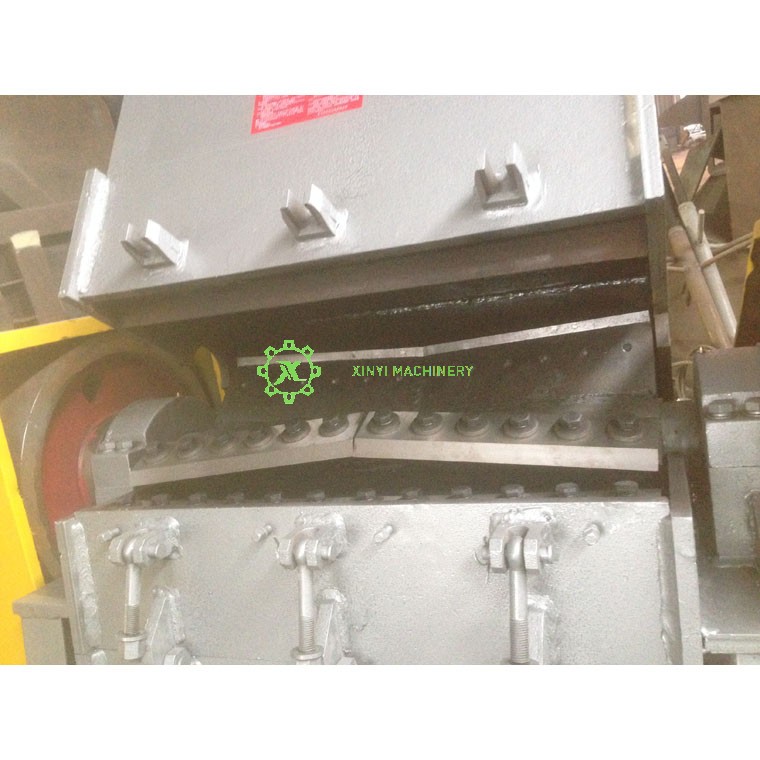

· Rotor Blades (or Rotary Blades): These are the moving blades attached to the rotating shaft (rotor) inside the crusher.

· Stator Blades (or Fixed Blades): These are the stationary blades fixed to the interior housing of the crusher chamber.

The plastic is cut through the scissor-like shearing action between the rotating rotor blades and the fixed stator blades.

Materials Used in Manufacturing

As a leading manufacturer like XINYI MACHINERY would utilize, the most common materials are:

· High-Grade Tool Steel (e.g., D2, SKD-11): This is the most common material, offering an excellent balance of hardness, wear resistance, and toughness.

· High-Speed Steel (HSS): Used for applications requiring even higher wear resistance and the ability to withstand higher temperatures without losing hardness.

· Tungsten Carbide: For the most demanding applications involving highly abrasive materials (e.g., fiber-reinforced plastics), blades may be tipped with tungsten carbide, which offers superior wear resistance but at a higher cost.

Types of Blades for Different Applications

The design of the blade varies significantly based on the type of plastic and the desired final size. XINYI MACHINERY and other manufacturers produce various types:

· Straight Blades: General-purpose blades for standard cutting of common plastic scraps like injection molding sprues, pipes, and profiles.

· Hook Blades (or Scissor Cut Blades): Feature a pronounced hook shape that creates a strong, grabbing, and shearing action. Ideal for tearing apart thick, bulky, and tough materials like purgings, lumps, and large plastic blocks.

· Claw Blades: Used in heavy-duty shredders for coarse size reduction of very large and tough items like pallets, drums, and car bumpers.

· Segment Blades: Large, replaceable blade segments mounted on a heavy-duty rotor, common in high-torque, slow-speed shredders for extreme duty cycles.

Importance of Quality Blades from a Manufacturer like XINYI MACHINERY

Using high-quality blades is critical for several reasons:

· Consistent Output Quality: Sharp, well-aligned blades produce uniform granules, which is essential for high-quality recycling.

· High Efficiency and Low Energy Consumption: Dull or poor-quality blades require more power to force the cutting action, increasing electricity costs.

· Reduced Downtime: Durable blades last longer between sharpening or replacement, maximizing production time.

· Reduced Maintenance Costs: Good blades cause less stress on the machine's bearings, rotor, and motor, leading to lower long-term maintenance.

· Versatility: A manufacturer like XINYI MACHINERY can provide blades tailored for specific materials (brittle PS, soft PE film, tough engineering plastics), ensuring optimal performance for each application.

Summary

In essence, plastic crusher machine blades are highly engineered, wear-resistant cutting tools that are fundamental to the plastic recycling process. They are not generic components but are specifically designed in terms of material, geometry, and hardness to match the crusher machine and the type of plastic being processed. As a specialist manufacturer, XINYI MACHINERY focuses on producing these critical components to the highest standards to ensure efficiency, durability, and reliability in industrial crushing and shredding operations.
