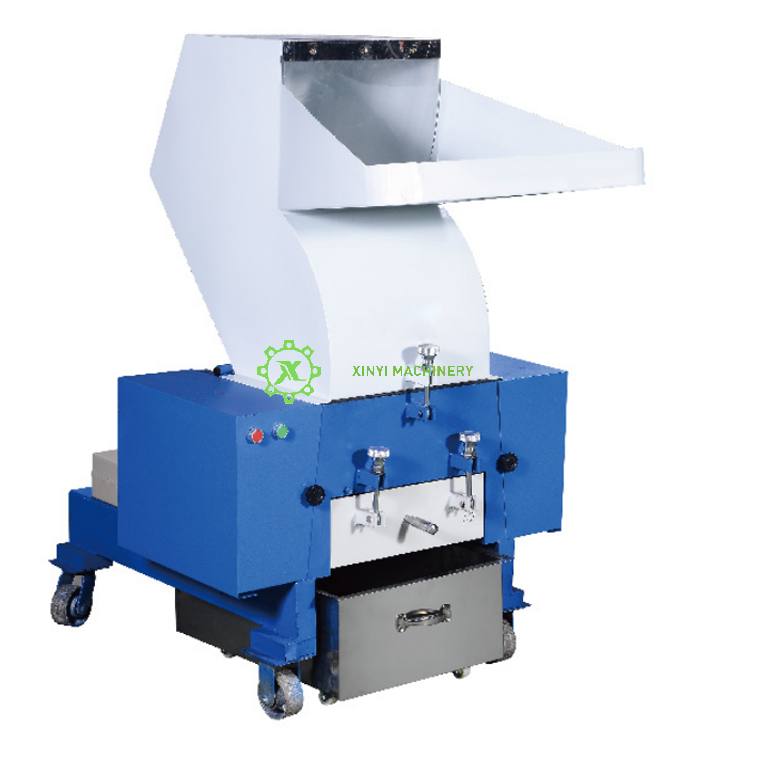

Plastic Grinder / Plastic Grinder Machine is an industrial machine used to reduce plastic waste, scrap, rejects, runners, bottles, pipes, sheets, films, or profiles into smaller pieces — usually flakes, granules, or powder — so the material can be reused, recycled, or more easily stored and transported.

In industrial recycling, it may also be called a plastic crusher, granulator, pulverizer, or grinding machine, depending on the design and the final particle size.

How it works

1. Plastic material is fed into a hopper.

2. A rotating rotor with blades cuts and shears the plastic against fixed bed blades.

3. A screen/mesh keeps material inside until it is small enough to pass through.

4. The ground plastic is discharged by gravity, blower, cyclone, or conveyor.

5. Optional systems can include dust collection, metal detection, conveying, and washing.

Main parts

· Hopper / feed opening

· Cutting chamber

· Rotor and rotating blades

· Fixed blades

· Screen or sieve

· Motor, belts, gearbox, bearings

· Frame and safety guards

· Control panel

Common types

· Plastic granulator / crusher – general-purpose size reduction into flakes.

· Plastic pulverizer – grinds plastic into fine powder, often for rotomolding or masterbatch.

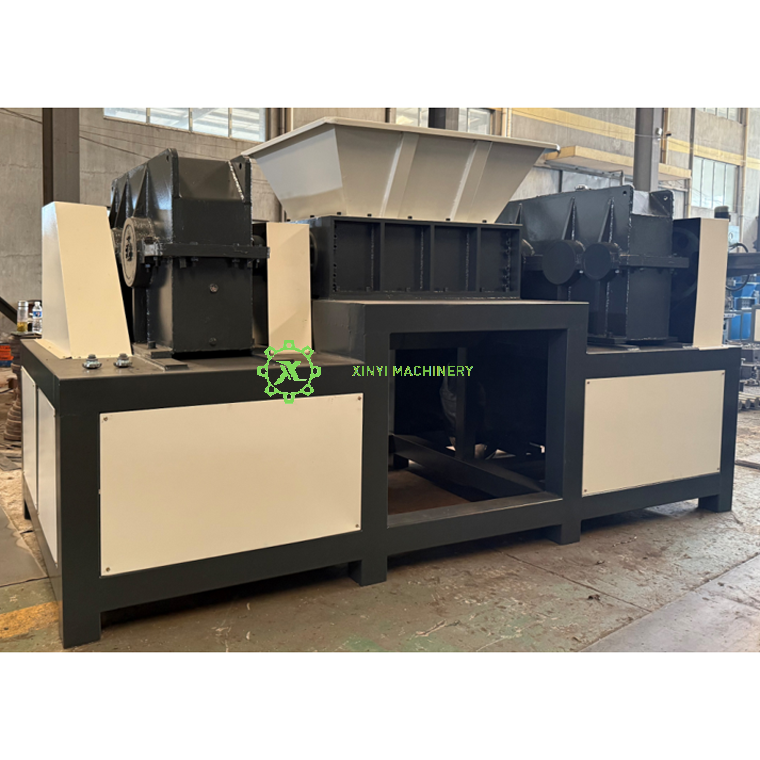

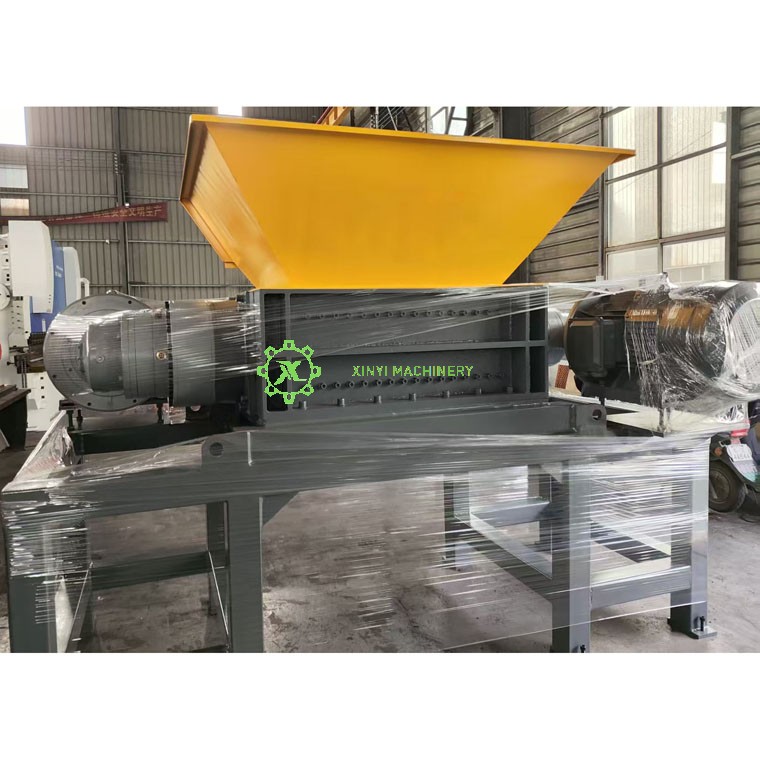

· Plastic shredder – preliminary reduction of large, bulky items into rough pieces.

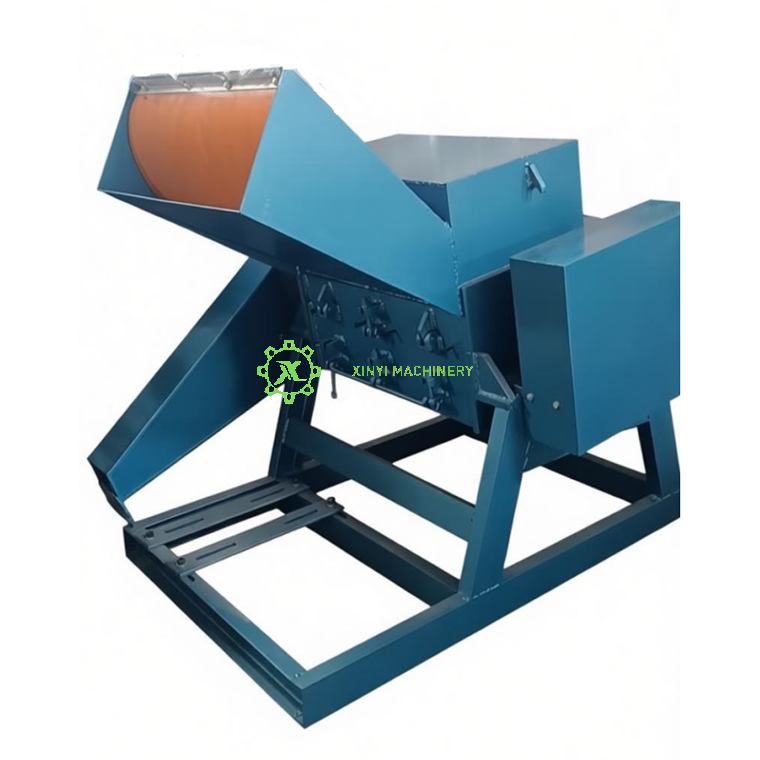

· Heavy-duty grinder – for thick pipes, profiles, lumps, and tough scrap.

· Film / bottle / pipe grinder – specialized designs for specific plastic forms.

· Inline/online grinder – installed beside molding machines to recycle runners immediately.

Typical applications

· Injection molding, blow molding, extrusion, thermoforming

· Packaging and film recycling

· Bottle, pipe, profile, sheet, and crate recycling

· Plastic recycling plants and waste processing

Grinder vs. shredder vs. pulverizer

· Shredder: coarse size reduction; large bulky items; low speed, high torque.

· Grinder/crusher/granulator: medium-to-fine flakes; common for recycling scrap.

· Pulverizer: very fine powder; used for specialized plastic processing.

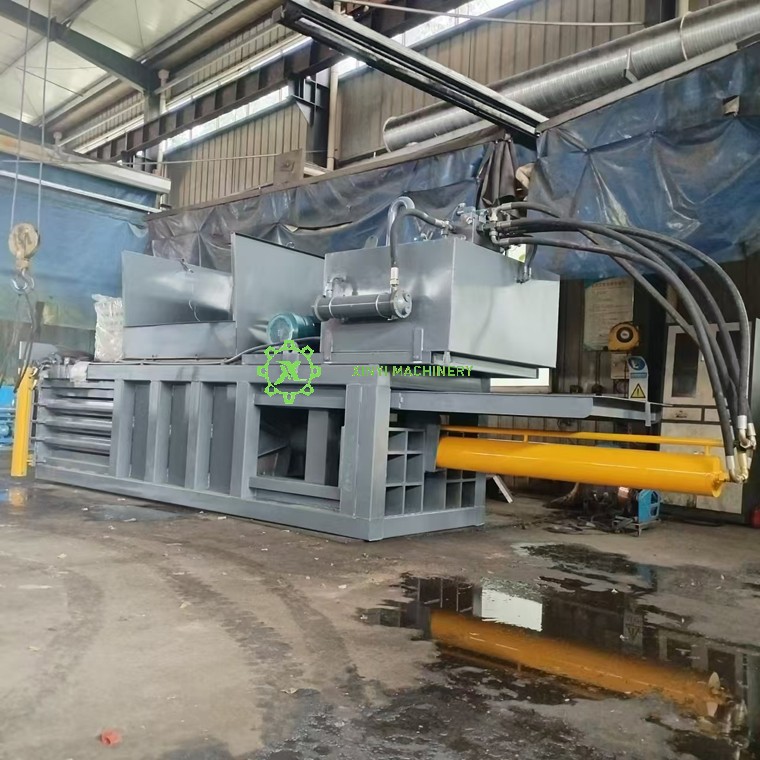

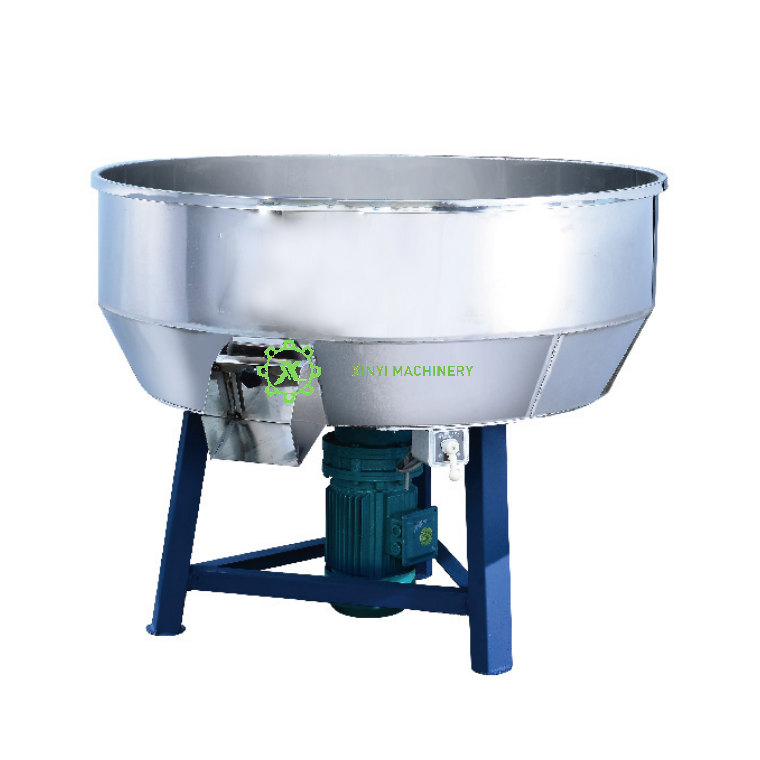

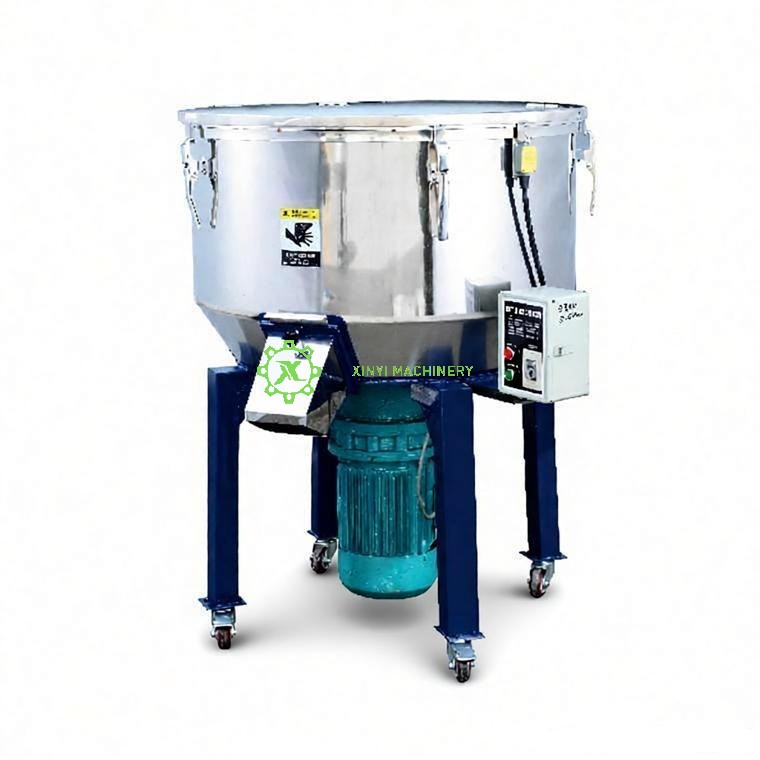

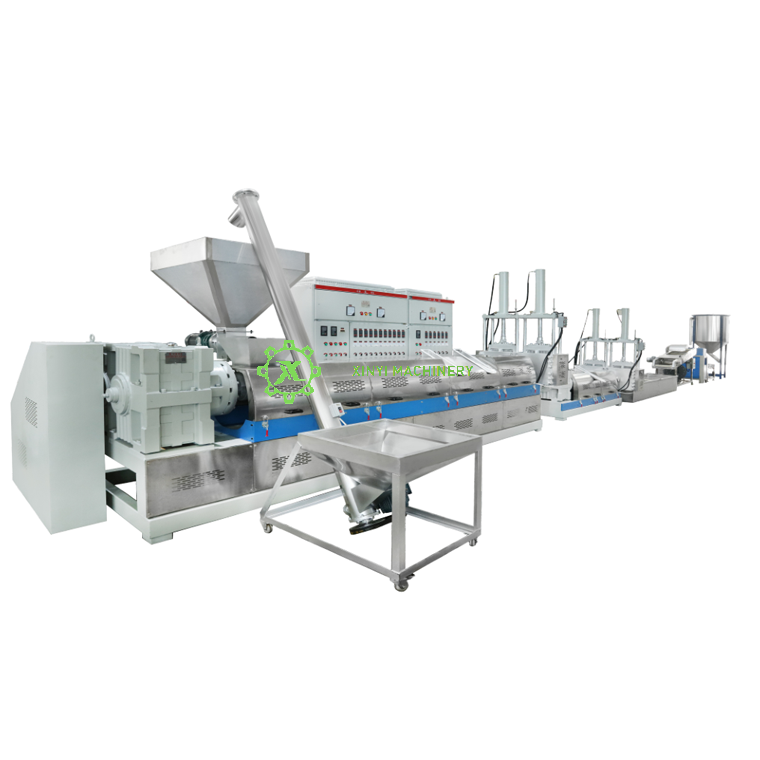

XINYI MACHINERY is a China-based leading manufacturer of plastic grinders, plastic grinder machines, plastic crushers, shredders, shredder machines, balers, pelletizing machines, crusher blades, plastic mixers, recycling machines, and related equipment, etc. The machines produced by XINYI MACHINERY are exported to more than 60 countries. When choosing a plastic grinder, the key factors are the plastic type, feed size, required output size, capacity, blade material, motor power, and whether it is for general recycling or a specific production line. Official website of XINYI MACHINERY: https://www.plastic-crushers.com
