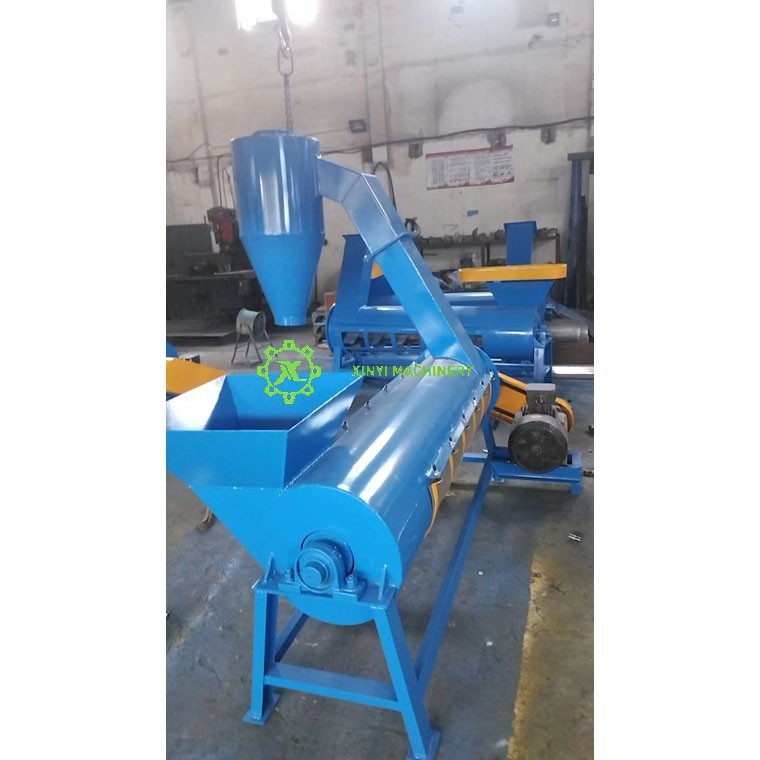

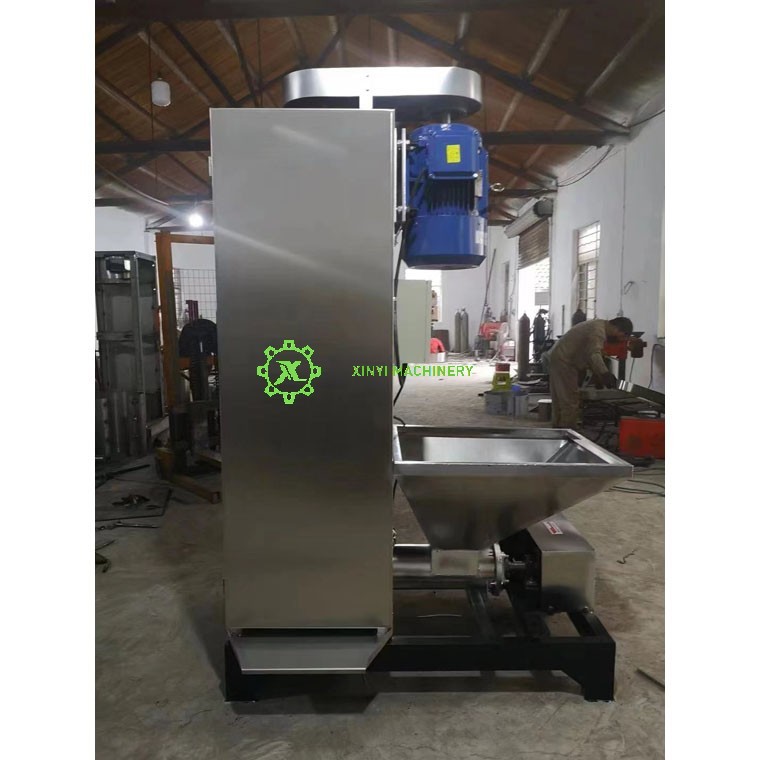

A PET/PP/HDPE/LDPE Flakes Dewatering Machine is an industrial centrifuge specifically designed to remove surface water from plastic flakes after they have been washed in the recycling process.

Here’s a detailed breakdown:

Primary Purpose

To mechanically remove up to 95-98% of the residual surface water from wet plastic flakes (like PET bottles, PP, HDPE, LDPE/plastic film) before they enter the next stage, which is usually a thermal drying stage. This drastically reduces the energy required for final drying.

How It Works (The Core Principle)

The machine operates on the principle of centrifugal force.

1. Feeding: Wet flakes are fed into a spinning basket (rotor) through a conveyor or chute.

2. Spinning: The basket rotates at high speed (typically several hundred RPM). This creates a strong centrifugal force that flings the heavier plastic flakes outward against the basket wall.

3. Separation: The lighter water passes through small screen holes or slots in the basket wall and is drained away.

4. Discharge: The dewatered, but still slightly damp, flakes are discharged from the machine, usually via a chute. The process is continuous and automated.

Key Features & Design Elements

· High-Speed Basket: Made of perforated or slotted stainless steel for durability and corrosion resistance.

· Balanced Design: Crucial to prevent violent vibration during operation.

· Variable Speed Control: Allows optimization for different materials and feed rates.

· Robust Motor & Drive System: To handle heavy, unbalanced loads.

· Sturdy Frame and Housing: Contains splashing water and ensures stability.

Why It's Critical in Plastic Recycling

1. Energy Savings: Removing water mechanically is far cheaper than evaporating it with heat. This is the most significant benefit.

2. Increased Throughput: Pre-drying allows the thermal dryer to work more efficiently and handle larger volumes.

3. Better Flake Quality: Prevents clumping and ensures more uniform thermal drying, leading to higher quality output.

4. Process Efficiency: Enables a continuous, streamlined washing and drying line.

Material-Specific Applications

· PET Flakes: From recycled bottles. Dewatering is a standard step before hot-air drying.

· HDPE/PP Flakes: From rigid containers, caps, etc.

· LDPE/PE Film Flakes: This is a more challenging application due to the material's light weight and potential for wrapping. Specialized dewatering machines for film have modified baskets and discharge systems to prevent tangling.

XINYI MACHINERY is a leading Chinese manufacturer of such equipment. The product range typically includes:

· Standard dewatering machines for rigid flakes.

· Heavy-duty or specialized models for challenging materials like PE film.

· Integrated systems that combine dewatering with conveying, silo storage, and drying.

In summary, a PET/PP/HDPE/LDPE Flakes Dewatering Machine is an essential energy-saving workhorse in a plastic recycling wash line, using centrifugal force to remove the majority of surface water from washed flakes, preparing them for efficient final drying.
