As a leading manufacturer, XINYI MACHINERY would typically guide customers through this choice based on their specific material, desired output size, and production goals.

Here is a detailed breakdown of the differences between single-shaft and double-shaft plastic shredders.

At a Glance: Key Differences

Detailed Analysis

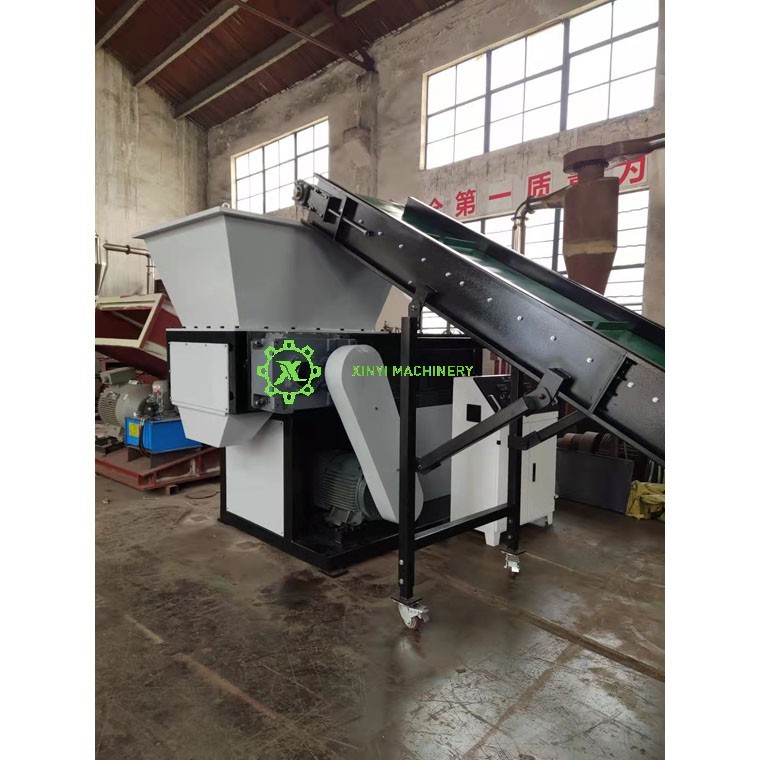

1. Single-Shaft Plastic Shredder

Principle of Operation:

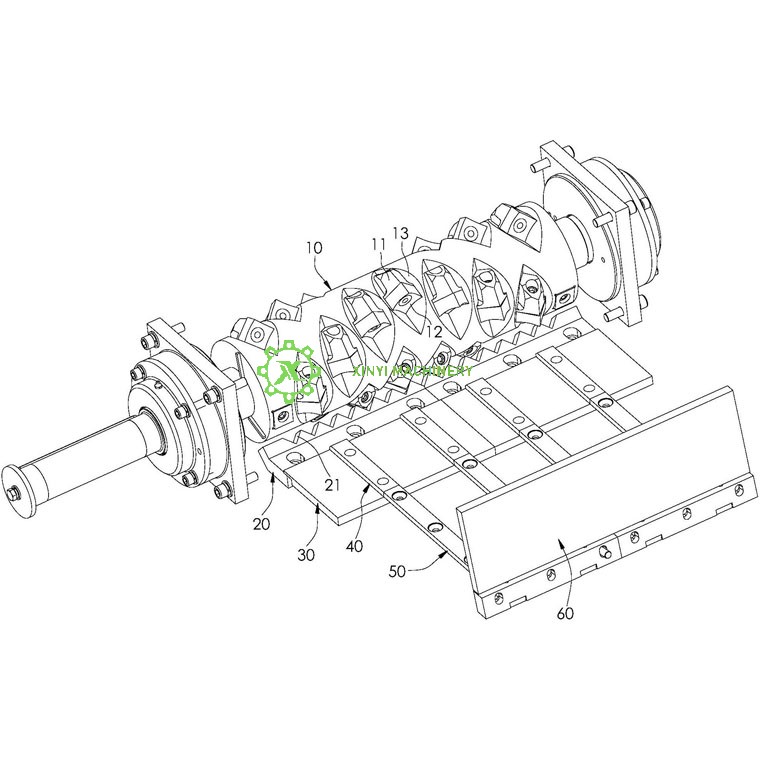

A single-shaft shredder uses a powerful, slow-speed, high-torque rotor. Knives (or hooks) are bolted onto this rotor. As the rotor turns, these knives pass close to a fixed counter-knife (or bed knife) integrated into the machine's housing. The material is grabbed by the rotor knives, pulled against the counter-knife, and sheared or torn apart. The shredded material falls through a screen grate located at the bottom of the cutting chamber, which ensures the output particles do not exceed a specific size.

Key Characteristics:

· Controlled Output: The screen is the defining feature, guaranteeing a maximum particle size. This is crucial for downstream processes like washing, sorting, or direct feeding into a granulator.

· High Torque, Slow Speed: Designed to handle tough materials with high resistance without stalling.

· Push Ram System: Many models include a hydraulic ram that pushes the material against the rotor, ensuring consistent feeding and preventing "bridging" (material getting stuck in the hopper).

Ideal Applications (What XINYI MACHINERY would recommend it for):

· Purification & Recycling Lines: Producing clean, uniform flakes from post-industrial waste (purgings, pipes, profiles, injection lumps).

· In-Line Size Reduction: Directly feeding a extruder or agglomerator.

· Bulk Solid Waste: Pallets, drums, large lumps of plastic.

· Materials: Purgings, pipes, profiles, film rolls, non-ferrous metals, paper, wood, and MSW.

Advantages:

· Predictable and consistent output size.

· Excellent for automated, continuous feeding systems.

· Often produces a cleaner cut with less fines.

· Can handle a wide variety of materials effectively.

Disadvantages:

· The screen can be a wear part and may require replacement.

· Generally has a lower throughput than a comparable double-shaft machine.

· Not ideal for very stringy or fibrous materials, which can wrap around the rotor.

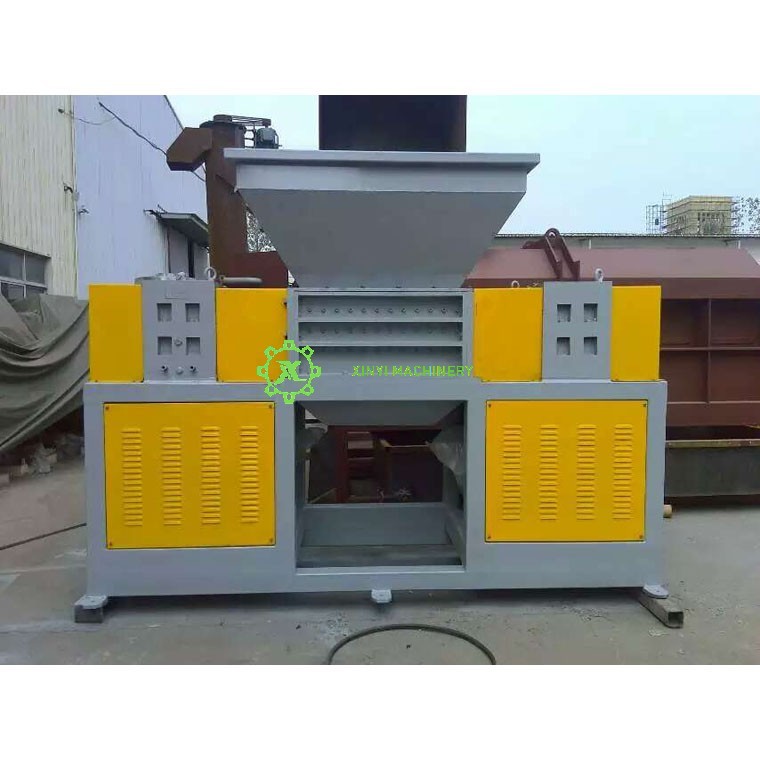

2. Double-Shaft Plastic Shredder (or Twin-Shaft Shredder)

Principle of Operation:

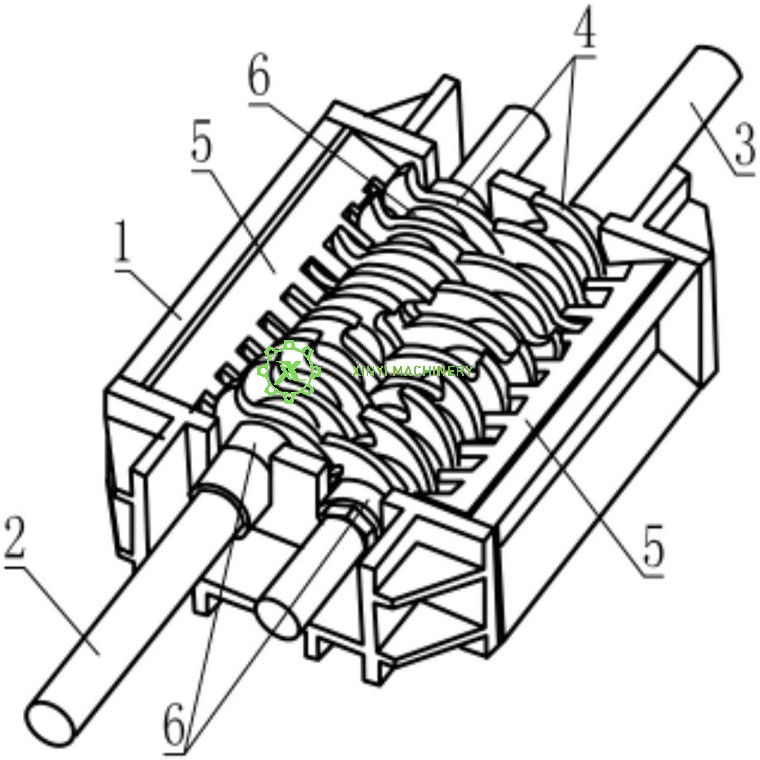

A double-shaft shredder features two parallel rotors that rotate at slow speeds and in opposite directions. Knives (often shaped like scissors) are mounted on both rotors. As the rotors turn, the knives intermesh and shear the material caught between them. The primary cutting action is the scissor-like shear between the knives on the two shafts. There is typically no screen controlling the output size; the material is torn and sheared until it is small enough to fall through the gap between the rotors.

Key Characteristics:

· Shearing Action: The intermeshing rotors provide a powerful, ripping, and tearing action.

· High Throughput: Can process large volumes of material very quickly.

· Self-Feeding: The rotating shafts often act as their own feed mechanism, pulling material down into the cutting zone.

· Handles Contaminants: More forgiving with materials that have dirt, sand, or small metal contaminants.

Ideal Applications (What XINYI MACHINERY would recommend it for):

· Volume Reduction (Pre-Shredding): Reducing large, bulky items (like pallets, crates, furniture, large pipes) into smaller, manageable pieces for further processing.

· Mixed Waste Streams: MSW (Municipal Solid Waste), industrial waste, electronic waste (e-waste), where materials are inconsistent.

· Tough & Stringy Materials: Tires, cables, carpets, and fibrous materials.

· Downstream Feeding: Feeding a secondary shredder or granulator for final sizing.

Advantages:

· Very high throughput and powerful shredding force.

· Low speed and high torque make it energy-efficient for heavy-duty tasks.

· No screen to clog or replace, making it suitable for dirty or mixed materials.

· Excellent for reducing bulky, irregular objects.

Disadvantages:

· Less control over final particle size; output is generally less uniform.

· Can produce more "fines" (very small dust-like particles).

· May require more power than a single-shaft for similar material volume due to the dual rotors.

How XINYI MACHINERY Would Help You Choose

The choice isn't about which is "better," but which is right for your application.

Choose a Single-Shaft Shredder if:

· Your goal is to produce a controlled, uniform chip or flake (e.g., for recycling or pelletizing).

· You are feeding the material directly into another process (like an extruder) and need consistent sizing.

· You are processing relatively clean, known materials.

Choose a Double-Shaft Shredder if:

· Your primary goal is rapid volume reduction of large, bulky items.

· You are dealing with a mixed or contaminated waste stream.

· You need a robust pre-shredder to break down large items before they go to a finer grinder.

· You are processing stringy, fibrous, or exceptionally tough materials.

In many advanced recycling plants, you will see both types working in tandem: a double-shaft shredder for primary, coarse size reduction, followed by a single-shaft shredder or granulator for secondary, fine grinding to produce the final, clean flake.
