Let's break down the usage and purpose of a Film Agglomerator clearly.

What is a Film Agglomerator?

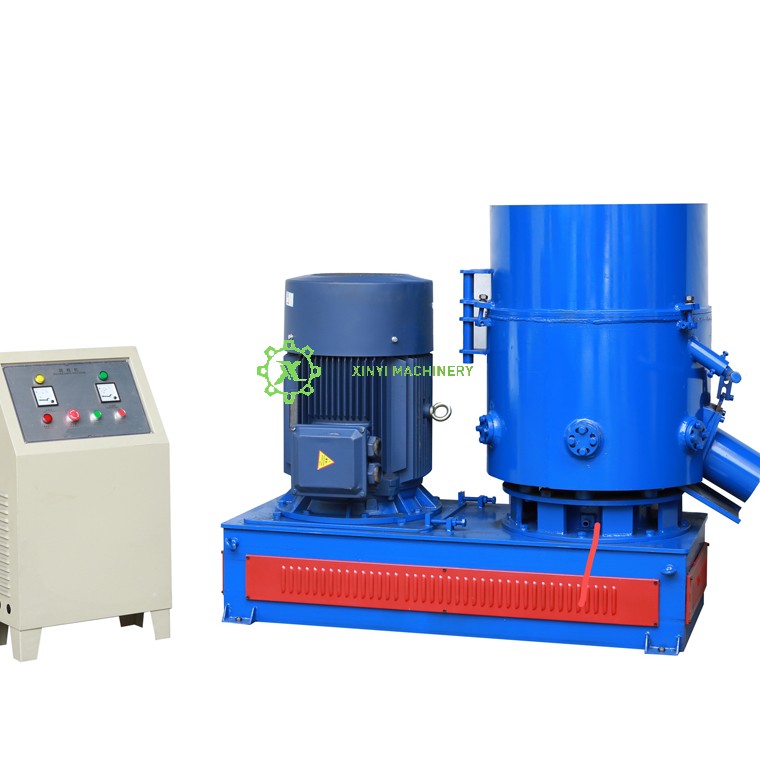

A film agglomerator (also known as a film densifier, hot wash, or friction washer) is a specialized plastic recycling machine designed to process light, bulky, and contaminated soft plastic films into dense, semi-molten agglomerates or "pills." It is not a traditional granulator that cuts material.

Primary Usage and Function

The core purpose of a film agglomerator is pre-processing and densification, serving as a crucial first step in the film recycling line. Here’s how it works and why it's used:

1. To Process What Granulators Cannot:

· Problem: LDPE, HDPE, PP films (like shopping bags, stretch film, garment bags), woven bags, and jumbo bags are extremely lightweight, bulky, and often contaminated with labels, dirt, or moisture. Feeding this material directly into a standard granulator is inefficient, causes winding/bridging, and results in poor quality, fluffy flakes that are hard to handle and wash.

· Solution: The agglomerator uses high-speed rotating blades to create intense frictional heat. This heat softens and melts the plastic film from the inside out, causing it to curl and clump together into dense, popcorn-like or pea-sized agglomerates.

2. Key Functions (Its Usage):

· Densification: Reduces volume by up to 90:1, transforming a truckload of fluffy film into a few bags of dense agglomerate. This makes storage, transportation, and feeding into the next machine (an extruder or pelletizing line) vastly more economical.

· Pre-washing & Decontamination: The intense friction and tumbling action during the agglomeration process helps to remove surface contaminants like sand, dirt, and loose labels. Water spray is often introduced to cool the agglomerates and assist in washing, hence the name "hot wash."

· Homogenization: Mixes different colors or sources of film into a more uniform mass.

· Moisture Reduction: The heat drives off a significant amount of surface moisture.

"It can granulate instead of granulator machines." – Clarifying This Point

This statement is partially true but needs context:

· For Film, It's Better Than a Granulator: For the specific input of soft, thin films, an agglomerator is superior and more efficient than a traditional cutting granulator. It solves the problems of winding, bridging, and low bulk density.

· It's Not a Direct Replacement for All Granulators: A granulator is designed to cut hard, thick, rigid plastics (like pipes, lumps, bottles, injection mold sprues) into clean-cut flakes. An agglomerator melts and clumps soft plastics. They are complementary machines used for different material streams.

· The Output is Different: The output of an agglomerator is dense, semi-molten agglomerates, not uniform flakes. These agglomerates are then typically fed into a pelletizing extruder to be melted, filtered, and turned into uniform pellets.

Typical Applications & Material Streams

· Post-consumer film: Stretch wrap, supermarket film, plastic bags.

· Post-industrial film: Film trim from packaging lines, pure HDPE/LDPE film rolls.

· Agricultural film: Used greenhouse film, silage wrap (often heavily contaminated).

· Flexible Packaging: Woven bags (PP), cement bags, jumbo bags (FIBCs).

· Washed Film Flakes: Often used as a final densification step after a film wash line to create a premium, dry agglomerate for extrusion.

Advantages Over Direct Granulation of Film

1. No Wind-Up: Eliminates the risk of film wrapping around the granulator rotor.

2. Higher Throughput: Can process bulky film much faster.

3. Better Pre-washing: Built-in cleaning action.

4. Ideal Feed for Extrusion: The dense, hot agglomerates melt more evenly and efficiently in an extruder than cold, fluffy flakes.

5. Lower Energy Consumption (for this specific material type) compared to trying to granulate and then re-melt fluffy film.

Conclusion

In summary, the usage of a film agglomerator is to be the essential first-stage processing machine for recycling light, dirty, and bulky plastic films. It densifies, pre-cleans, and transforms this challenging material into a format that is commercially viable to handle, transport, and feed into the next stage of pelletizing. While it performs a form of "granulation," it is a specialized thermal/densification process distinct from mechanical cutting, making it the machine of choice for film recycling rather than a direct replacement for all granulators.

XINYI MACHINERY, as a leading manufacturer, offers a range of these machines tailored to different film types (HDPE, LDPE, woven, jumbo bags), providing integrated solutions for plastic recyclers worldwide. Their product lineup of crushers, shredders, and granulators complements the agglomerator for handling a full spectrum of plastic waste.
