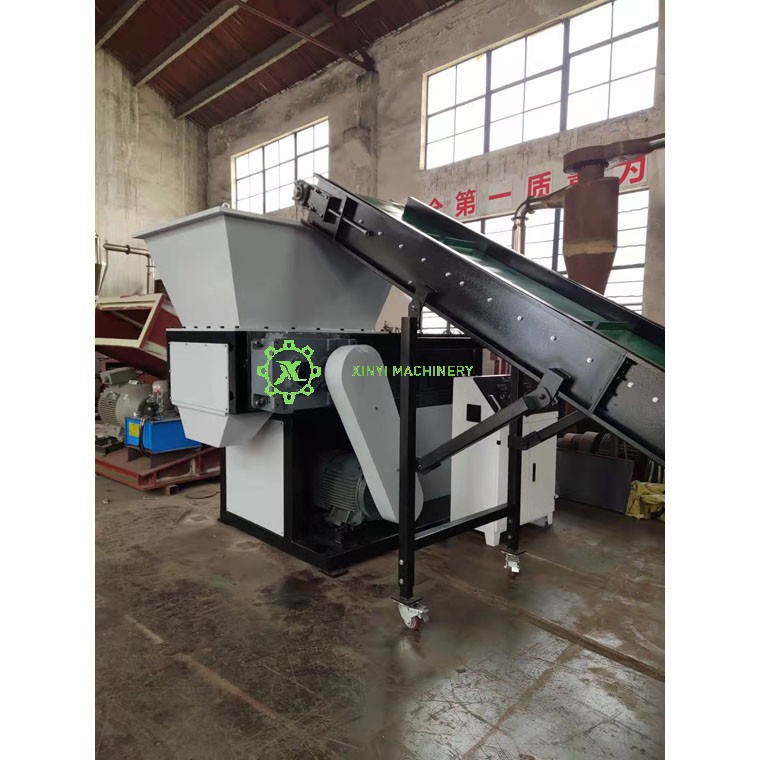

What Is a Single Shaft Plastic Shredder?
A single shaft plastic shredder is an industrial machine used to reduce plastic waste (such as purgings, lumps, pipes, films, bottles, and reject parts) into small, uniform particles called regrind or
flakes. It operates with one rotating shaft fitted with cutting knives, working against a fixed bed knife, and uses a hydraulic pusher to feed material consistently.
Key Components & Working Principle
1. Hopper – You load the plastic scrap.
2. Hydraulic Pusher – A ram pushes the material against the rotating rotor, ensuring stable feeding even for bulky or irregular shapes.

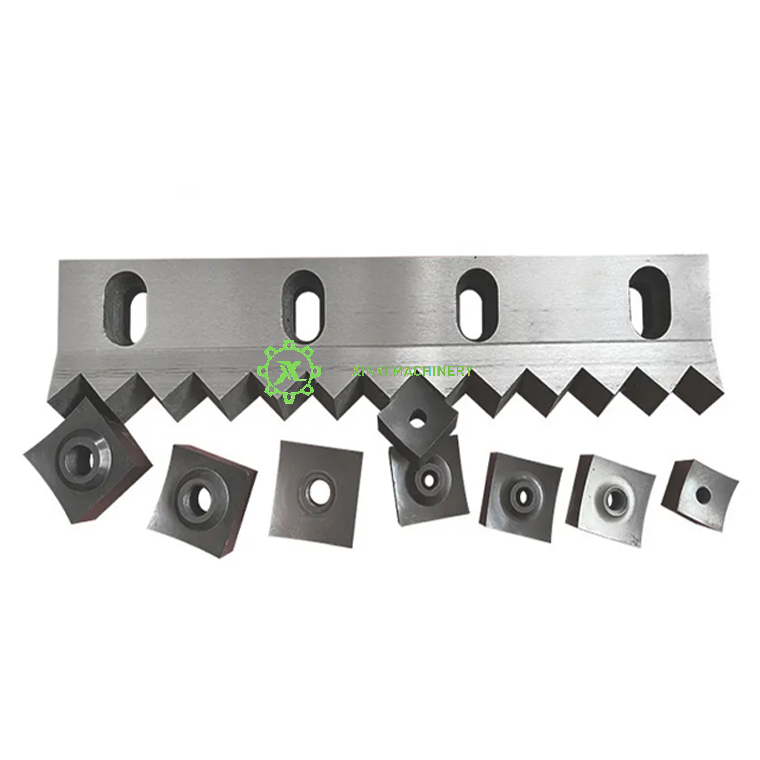

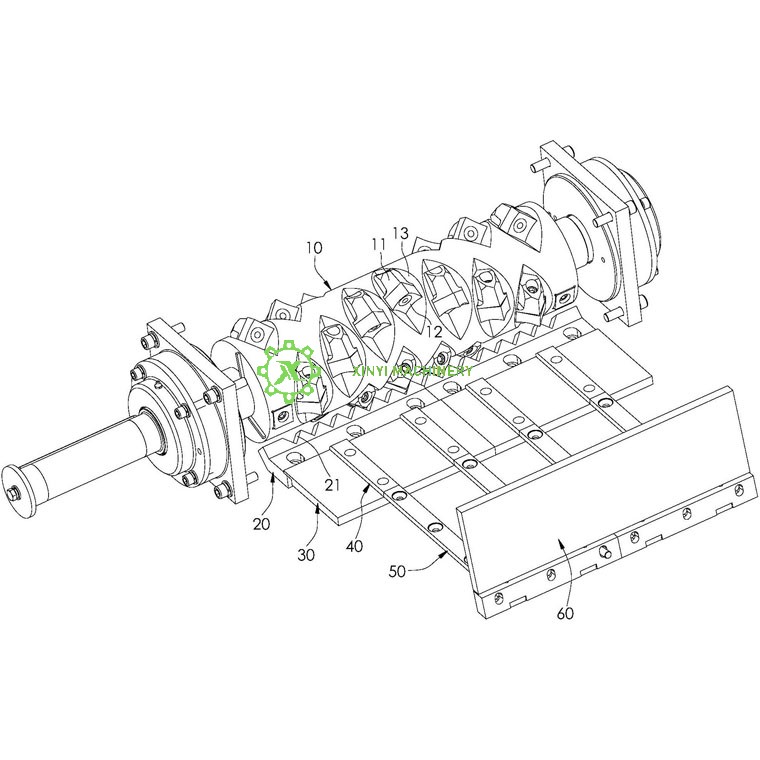

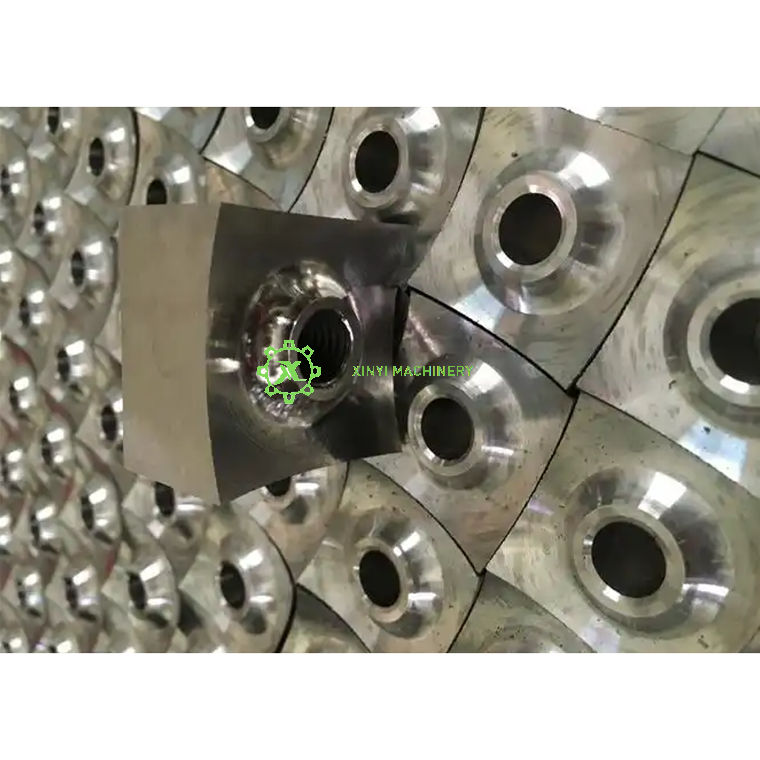

3. Single Rotor (Shaft) – A heavy-duty steel shaft with multiple replaceable cutting knives. It rotates at low speed but with high torque.
4. Stationary Bed Knife – Fixed to the frame; the rotor knives cut against it like a pair of scissors.
5. Screen (Sieve) – Positioned under the rotor. Only when material is shredded small enough to pass through the screen holes does it exit the chamber. This guarantees uniform particle size.
Process:
Plastic enters → Hydraulic ram pushes it against the rotor → Rotating knives cut against the fixed knife → Small chips fall through the screen → Uniform regrind is discharged.
Why Choose a Single Shaft Design?
Advantage | Why It Matters |
Uniform output size | Controlled by the screen – ideal for feeding extruders, granulators, or washing lines. |
Handles tough materials | Works with thick-walled scrap, purgings, lumps, large pipes, and even fiber-reinforced plastics. |
Low-speed, high-torque | Quiet operation, less dust, lower energy consumption vs. high-speed granulators. |
Versatility | Processes PP, PE, PET, ABS, PC, PA, and many other plastics. |
Typical Applications
· In house recycling – Sprues, runners, reject injection molded parts.
· Post consumer recycling – Crushing plastic bottles, containers, drums.
· Purge & lump recycling – Breaking down extruder changeover waste.
· Pipe & profile shredding – Long pipes and window profiles.
· Pre shredding – Reducing large items before a granulator.
Single Shaft vs. Double Shaft Shredder (Quick Comparison)
Feature | Single Shaft | Double Shaft |
Output uniformity | Excellent (screen controlled) | Lower (no screen typically) |
Speed / Torque | Medium-low speed, high torque | Low speed, very high torque |
Best for | Size reduction to a specific, consistent size | Rough shredding of bulky items (e.g., car bumpers, industrial bins) |
Secondary step often needed? | Usually not – regrind is ready for further processing | Often requires a single shaft shredder or granulator afterward |
In the Context of XINYI MACHINERY
As a leading China-based manufacturer, XINYI MACHINERY produces heavy duty single shaft shredders designed for durability and efficiency. Features you can typically expect from their machines include:
· Solid, balanced rotor construction – For vibration free operation and long life.
· Easy knife change systems – Quick release bolts or hydraulic assists to reduce downtime.
· Interchangeable screens – Different hole diameters (e.g., 10mm, 20mm, 40mm) for variable output sizes.
· PLC control – Monitors load, automatically reverses the rotor to clear jams, and alerts operators.
· Safety features – Emergency stops, interlocked hopper doors, and overload protection.
Summary
A single shaft plastic shredder is the go to machine when you need to turn large, bulky, or thick plastic waste into small, clean, uniform chips – ready for extrusion, washing, or direct re-use. Manufacturers
like XINYI MACHINERY build these shredders to be rugged, efficient, and easy to maintain for round-the-clock recycling operations.
If you have a specific material or throughput in mind, XINYI’s range of single shaft, double shaft, and multi-shaft shredders , shredder blades, crusher blades and other wastes plastic recycling machines can be tailored to your needs.
