As a leading manufacturer, XINYI MACHINERY's expertise is precisely in this area.

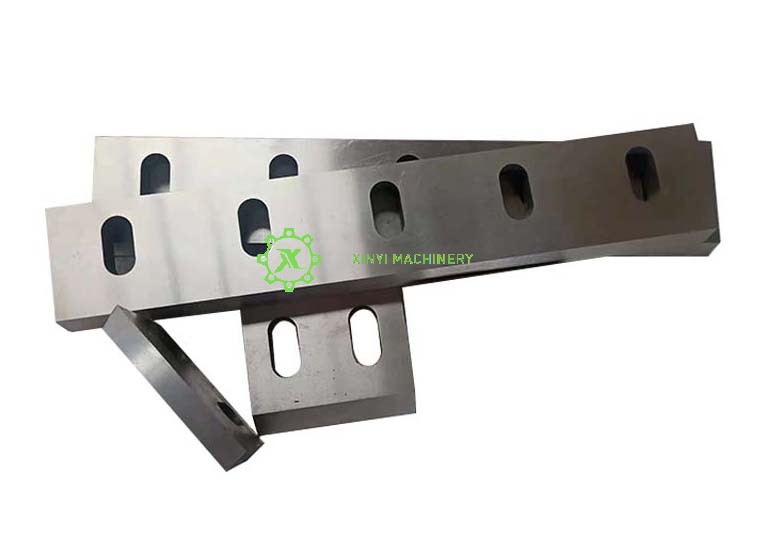

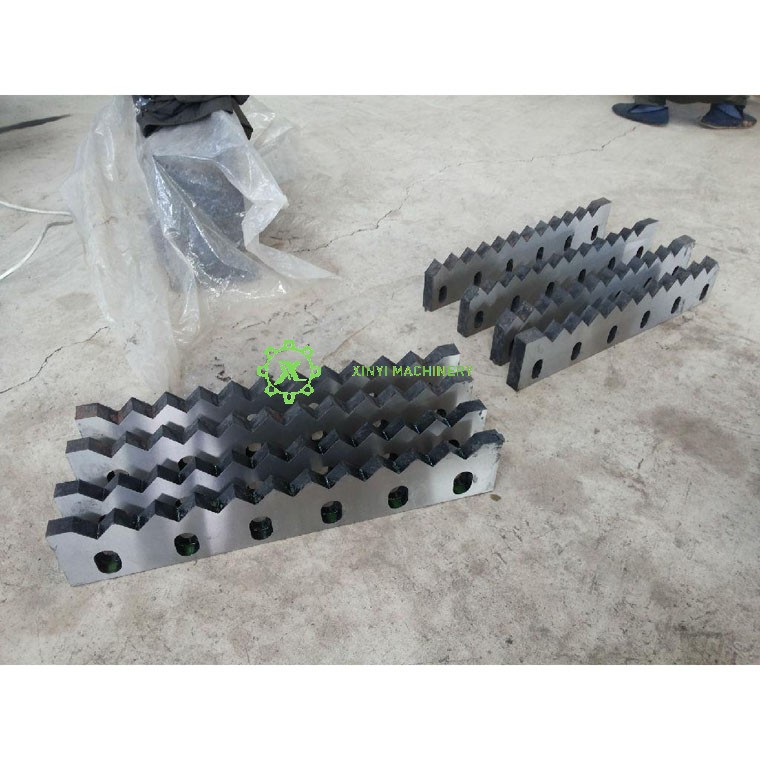

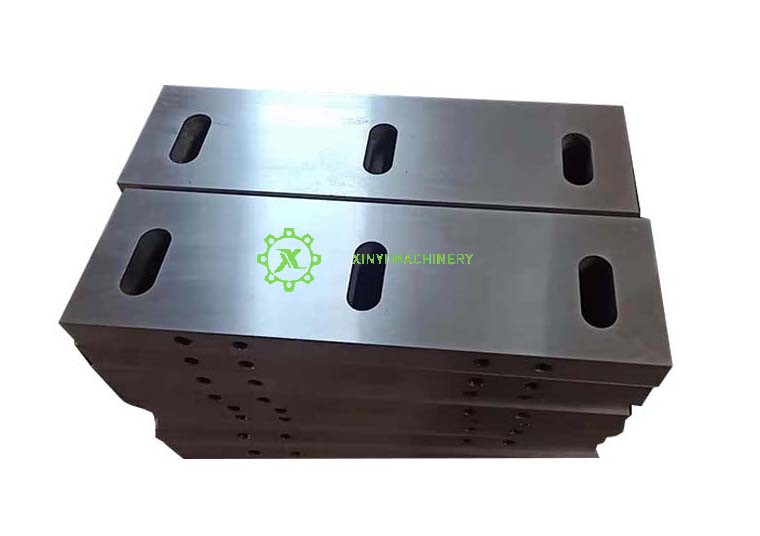

The choice between 9CrSi, SKD11, and D2 for plastic crusher blades isn't about one being universally "the best," but rather about selecting the right tool for the specific job. Each material has its own strengths and ideal applications.
Here is a detailed breakdown to help you decide.
Quick Summary
· 9CrSi: The cost-effective all-rounder, good for general-purpose crushing of common, non-abrasive plastics.
· SKD11: The high-performance balanced choice, offering superior wear resistance and good toughness for abrasive and engineering plastics. It's often the preferred choice for demanding applications.
· D2: The wear resistance champion, ideal for the most abrasive materials but requires careful handling due to lower toughness.
Detailed Comparison of the Three Materials
1. 9CrSi (Equivalent to AISI L2 / S1)
· Type: Silicon-Chromium Alloy Tool Steel (Oil-Hardening)
· Key Characteristics:
o Good toughness and impact resistance.
o Moderate wear resistance.
o Good hardenability and dimensional stability during heat treatment.
o Lower cost compared to SKD11 and D2.
· Best Suited For:
o Soft, non-abrasive plastics: LDPE, HDPE, PP, PS, ABS.
o General-purpose crushers where the primary concern is impact from large lumps or occasional tramp material, not extreme abrasion.
o Applications where blade cost is a significant factor.
· Limitations: Will require more frequent sharpening or replacement than SKD11 or D2 when processing abrasive materials.
2. SKD11 (Equivalent to AISI D2)
· Type: High-Carbon, High-Chromium Cold Work Tool Steel (Air-Hardening)
· Key Characteristics:
o Excellent balance of wear resistance and toughness.
o High hardness after heat treatment (typically HRC 58-62).
o Good dimensional stability during heat treatment.
o Better resistance to chipping than D2 due to a more refined microstructure (especially in vacuum-treated or ESR versions).
· Best Suited For:
o Abrasive and engineering plastics: Nylon (PA), Fiber-reinforced plastics (GFRP, CFRP), PC, POM (Acetal).
o Film, fibers, and sheet scrap which can be highly abrasive.
o Most demanding applications where a long service life is critical. This is often considered the industry standard for high-performance crusher blades.
· Why it's a top choice: It provides the "sweet spot" of durability without being excessively brittle.
3. D2 (AISI D2 / Equivalent to SKD11)
It's important to clarify: SKD11 is the Japanese JIS standard designation that is largely equivalent to AISI D2. Their chemical compositions are very similar. However, in practice, the quality can vary based on the manufacturing process (e.g., ESR - Electro-Slag Remelting) and the specific mill.
· Key Characteristics:
o Exceptional wear resistance (the highest of the three), due to a high volume of hard carbides.
o Lower toughness compared to SKD11/9CrSi. More prone to chipping on impact.
o Can achieve very high hardness (HRC 60-64).
· Best Suited For:
o Extremely abrasive materials: Heavily filled plastics, composite materials, continuous recycling of abrasive scrap.
o Applications where pure wear is the primary failure mode, and impact is minimal.
· Limitations: Not recommended for crushers that may encounter metal contaminants or for crushing very thick, hard plastic lumps where impact shock is high.
Comparison Table
Feature | 9CrSi | SKD11 (D2-type) | D2 (Premium) |
Primary Strength | Toughness & Cost | Balance of Wear & Toughness | Maximum Wear Resistance |
Wear Resistance | Good | Very Good | Excellent |
Toughness/Impact | Very Good | Good | Fair (Can be brittle) |
Cost | Lowest | Medium | Highest |
Ideal For | Soft Plastics (PE, PP, PS) | Abrasive & Engineering Plastics | Extremely Abrasive Materials |
Risk of Chipping | Low | Medium | Higher |
Conclusion & Recommendation for XINYI MACHINERY
As a leading manufacturer, you understand that the "ideal" material is a function of the application. Here is a final synthesis:
o For Standard, Cost-Sensitive Machines (Crushing PE, PP, ABS):
o 9CrSi is a perfectly suitable and economical choice. It provides excellent value and performance for the majority of common recycling tasks.
o For High-Performance & Universal Machines (The "Sweet Spot"):
o SKD11 is the highly recommended and most versatile choice. Its superior balance ensures long life when processing a wide range of materials, including the more abrasive engineering plastics and fiber-filled composites. It resists chipping better than standard D2, making it more reliable in real-world conditions where minor contamination can occur.
o For Specialized, Highly Abrasive Applications:
o D2 (or a premium, high-toughness variant of SKD11/D2) is the ideal choice. This is for customers who are exclusively processing highly abrasive streams and where maximizing time between sharpening is the absolute top priority, even at the cost of some impact resistance.
Pro Tip for a Manufacturer: The heat treatment process is as critical as the base material. Proper hardening and tempering are what unlock the potential of these steels. A well-heat-treated 9CrSi can outperform a poorly treated D2. As a leading company, XINYI MACHINERY's expertise in precision heat treatment is what will truly differentiate your blades and justify the use of superior materials like SKD11.
In summary, while all three have their place, SKD11 often represents the ideal compromise for a premium plastic crusher blade, offering the durability and longevity that professional recyclers and plastic processors require.
