A crusher machine (often referred to as a crusher, plastic crusher, or granulator in some contexts) is a machine used to reduce the size of plastic materials—such as scrap, rejects, purgings, or waste—into smaller, uniform pieces for easier handling, washing, or further processing.
In the plastics industry, crushers play a critical role in recycling and production lines. While the previous explanation covered granulating machines (which often cut strands into pellets), crushers typically handle larger, bulkier input materials.
How a Crusher Works
1. Feeding: Large plastic items (e.g., bottles, containers, pipes, film rolls, injection-molded rejects) are fed into a hopper.
2. Size Reduction: Inside the cutting chamber, a high-speed rotor fitted with rotating blades works against stationary blades fixed to the housing. The material is repeatedly cut and sheared until the pieces are small enough to pass through a screen.
3. Discharge: The crushed particles (commonly called “regrind”) fall through the screen and are collected in a bin or conveyed to the next stage (washing, drying, extrusion, etc.).
Types of Crusher Machines
Leading manufacturers like XINYI MACHINERY typically offer a range of crushing equipment to suit different applications:
Type | Application |
Central / Heavy-duty Crusher | Designed for large, thick-walled parts (e.g., crates, drums, automotive parts, purgings). Powerful motor, heavy rotor, high throughput. |
Beside-the-press Granulator | Compact unit placed next to an injection molding or blow molding machine to immediately granulate sprues, runners, and rejects for immediate recycling. |
Film / Light Material Crusher | Specialized for soft, flexible materials like plastic films, woven bags, and fibers. Often features a “pneumatic” or “air-vent” design to prevent bridging. |

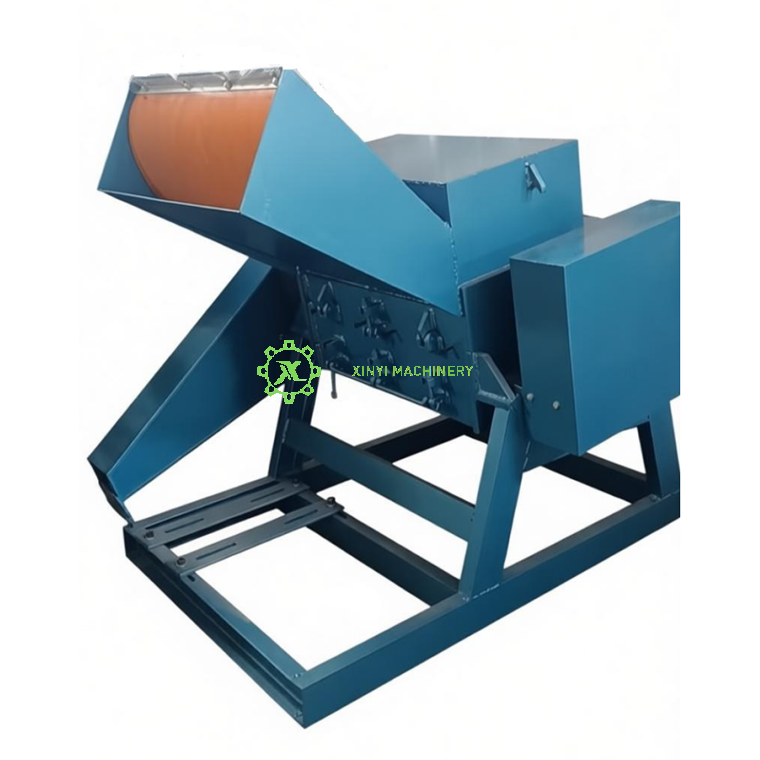

Pipe / Profile Crusher | Long, tubular items (pipes, profiles) can be fed directly with a specially designed hopper and rotor to avoid pre-cutting. |
Shredder | A lower-speed, high-torque machine for heavy-duty pre-crushing of very large or tough items (e.g., whole bales, purgings, thick blocks) before a finer crusher. Often used in multi-stage recycling lines. |
Crusher vs. Granulator vs. Shredder
In the plastics industry, these terms are sometimes used interchangeably, but they serve distinct roles:
· Crusher / Granulator: Typically high-speed rotary cutting, producing relatively uniform regrind (often 3–12 mm). “Granulator” often implies a smaller, more precise machine used for “beside-the-press” or strand pelletizing, whereas “crusher” often refers to larger, heavy-duty units for bulk scrap.
· Shredder: Low-speed, high-torque, designed for heavy-duty primary reduction (e.g., entire car bumpers, bales, thick purgings). Shredders produce coarse chips that may then be fed into a crusher for finer granulation.
Many recycling lines use a shredder-crusher combination: the shredder does the first rough cut, and the crusher reduces the material further to a size suitable for washing or extrusion.
Role in a Recycling or Production Line
Crushers are usually the first step in a plastic recycling system:
1. Crushing → reduces large waste to a manageable size.
2. Washing & Drying (for contaminated scrap) → removes dirt, labels, residues.
3. Extrusion & Granulating → melts and re-pelletizes the material into high-quality reusable pellets.
For in-house production recycling (e.g., injection molding), a beside-the-press granulator allows immediate reuse of runners and rejected parts, reducing waste and material costs.
XINYI MACHINERY’s Crusher Offerings
As a leading Chinese manufacturer, XINYI MACHINERY provides a comprehensive range of crushing equipment designed for:
· High efficiency – optimized rotor geometry, steep cutting angles, and high torque motors.
· Durability – hardened blades, heavy-duty bearings, and robust steel construction for continuous operation.
· Versatility – machines tailored for soft film, rigid plastics, pipes, profiles, and even rubber or wood.
· Automation integration – often combined with conveying systems, metal separators, and dust collection for a complete recycling line.
In summary, a crusher machine is the essential first step in plastic size reduction—transforming bulky waste into consistent, free-flowing regrind that can be washed, dried, and re-extruded into valuable new products.
