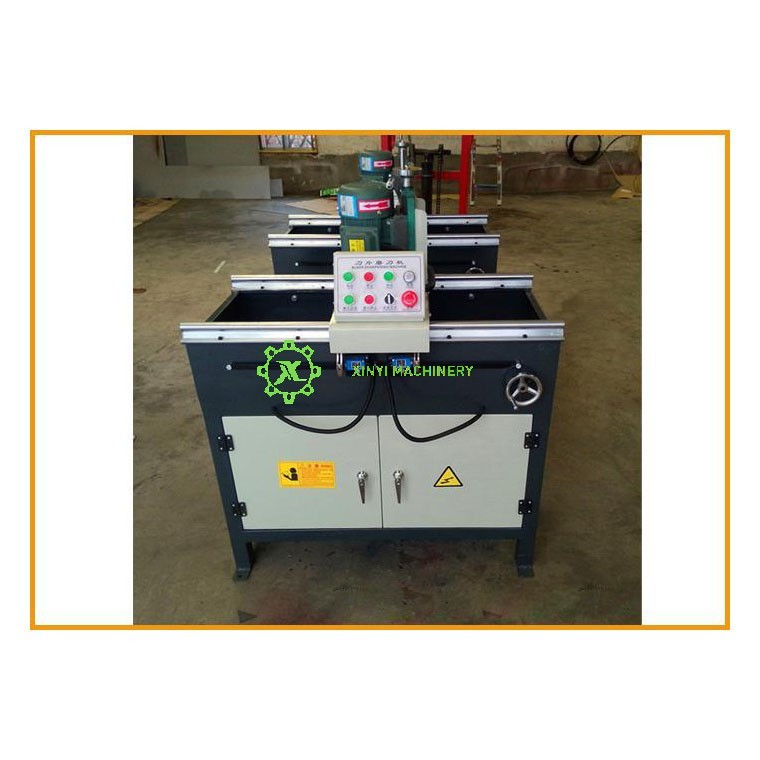

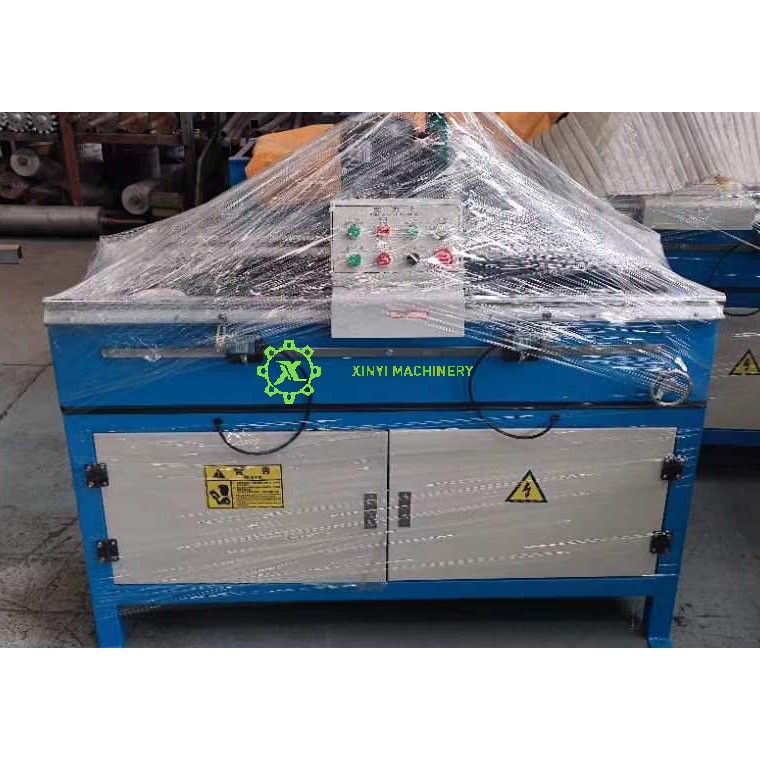

As a representative example from an industry leader like XINYI MACHINERY, an Automatic Knife Sharpening Machine for Shredder or Crusher Blades is a specialized industrial grinding machine designed to precisely and efficiently restore the cutting edges of industrial blades used in size-reduction equipment.

Here’s a detailed breakdown:

1. Core Definition & Purpose

It is an automatic grinding machine that automates the process of sharpening the straight or slightly angled cutting edges of industrial knives. These knives are critical components in:

Shredders: For plastics, paper, wood, tires, metal, and municipal solid waste.

Crushers/Granulators: For plastics, rubber, and other materials.

The primary purpose is to maintain optimal cutting performance, ensure consistent particle size, reduce energy consumption, and extend the service life of expensive blades without relying on manual grinding skills.

2. Key Components & How It Works

Precision Bed & Guideways: Provides a stable, vibration-free base for accurate grinding.

Control System: The system automates the entire cycle.

Grinding Head: Houses the motor and spindle that drives the grinding wheel (typically cup-shaped or straight wheels made of abrasive materials like CBN or diamond for carbide-tipped blades).

Magnetic or Mechanical Clamping Chuck: Holds the blade securely and perfectly flat during grinding. Strong magnetic chucks are standard for ferrous blades.

Coolant System: Floods the grinding area with coolant to:

Prevent overheating (which can ruin the blade's temper and cause "burn" marks).

Wash away metal particles (swarf).

Extend the life of the grinding wheel.

Automatic Crossfeed: Moves the grinding wheel across the blade edge in precise increments for even material removal.

Basic Operation Process:

The dull blade is securely clamped onto the chuck.

The machine starts. The grinding wheel rotates at high speed while the automated carriage moves the wheel along the blade's length.

After each pass, the wheel feeds horizontally to take off a precise amount of material (e.g., 0.01-0.05mm).

The coolant flows continuously throughout the process.

Once complete, the blade has a sharp, uniform, and burr-free edge ready for installation.

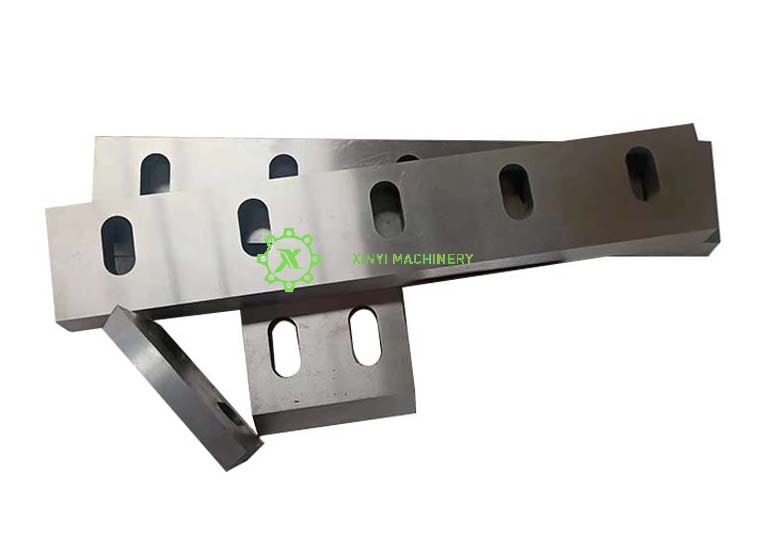

3. Types of Blades It Sharpens

These machines are versatile and can handle:

Straight Knives: The most common type for many shredders and crushers.

Single- or Double-Sided Edges: Can sharpen primary and secondary bevels.

Materials: High-carbon steel, tool steel, alloy steel, and carbide-tipped blades (requiring diamond/CBN wheels).

Various Sizes: From small plastic granulator blades (a few inches) to large industrial shredder blades (several feet long).

4. Critical Benefits of Using an Automatic Machine

Consistency & Precision: Every blade is sharpened to the exact same angle and finish, ensuring balanced cutting and longer blade sets life.

Time & Labor Savings: Fully automated operation is far faster and requires less skilled labor than manual grinding.

Preserves Blade Life: Precise control and cooling prevent overheating and excessive material removal, allowing for more regrinds per blade.

Improved Safety: Automates a dangerous process, keeping operators away from grinding wheels and metal sparks.

Cost-Effectiveness: Maximizes uptime of shredders/crushers and reduces long-term blade replacement costs.

5. Role of XINYI MACHINERY

As a leading manufacturer and factory supplier, XINYI MACHINERY embodies this technology by:

Designing & Manufacturing: Producing robust and precise automatic sharpening machines tailored to the market's needs.

Providing Complete Solutions: They understand the entire ecosystem—from the crusher/shredder machine to the blades and the equipment needed to maintain them.

Ensuring Compatibility: Their sharpening machines are built to handle the specific blades used in their own and other brands of shredders/crushers.

Offering Expertise: They provide technical support on grinding parameters, wheel selection, and maintenance for optimal results.

In Summary:

An Automatic Knife Sharpening Machine from a company like XINYI MACHINERY is an essential piece of maintenance equipment for any serious recycling, size-reduction, or manufacturing operation. It transforms blade sharpening from a variable, skill-dependent art into a reliable, precise, and efficient industrial process, ensuring that shredders and crushers operate at peak efficiency and productivity.
