Building on XINYI MACHINERY's expertise as a leading manufacturer, here is a comprehensive explanation.

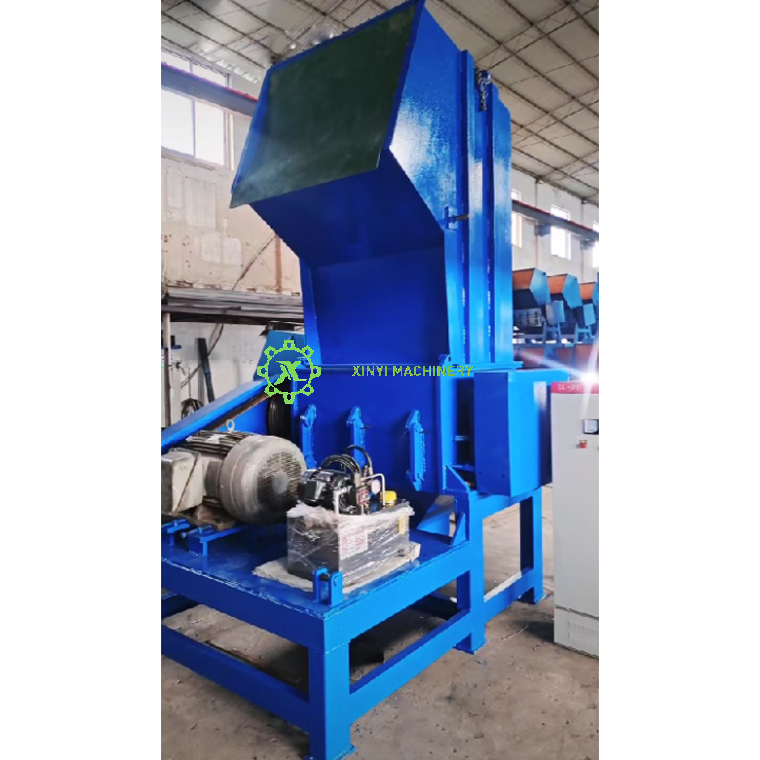

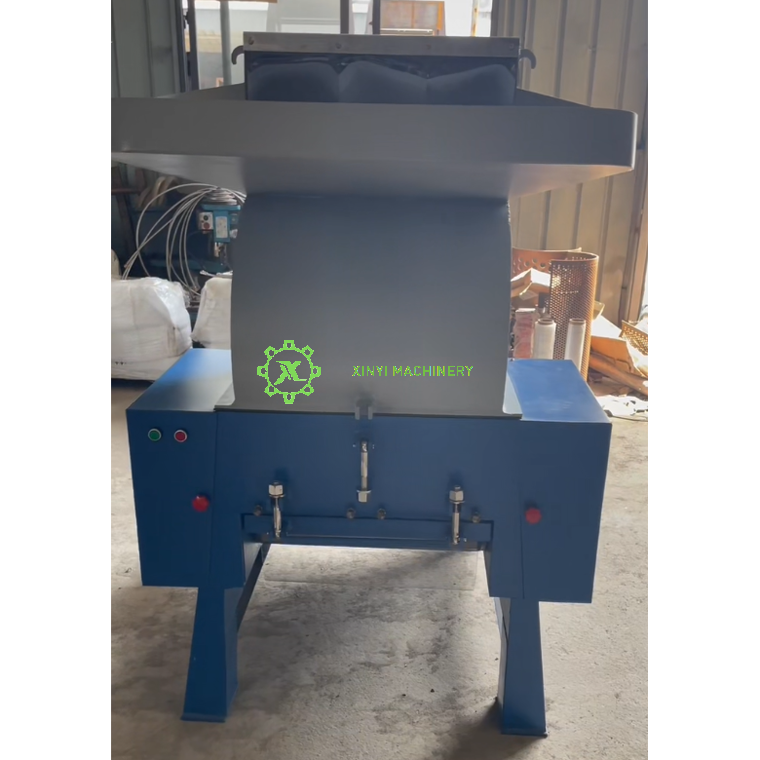

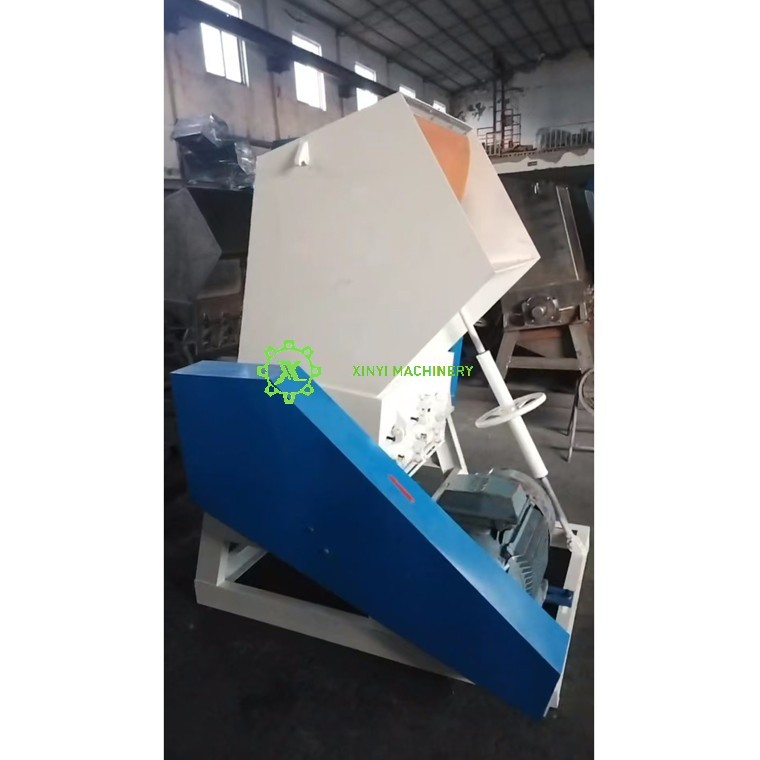

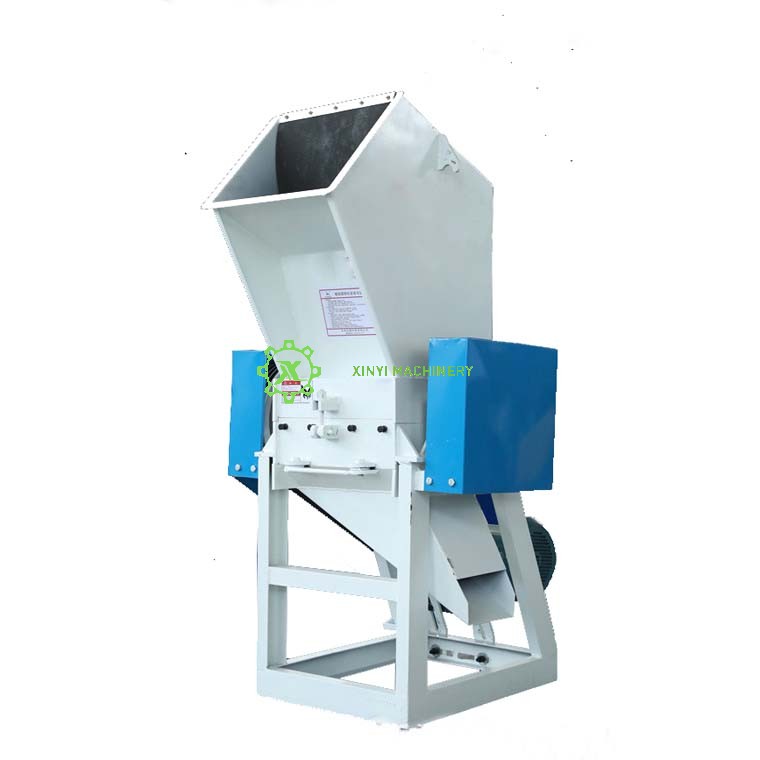

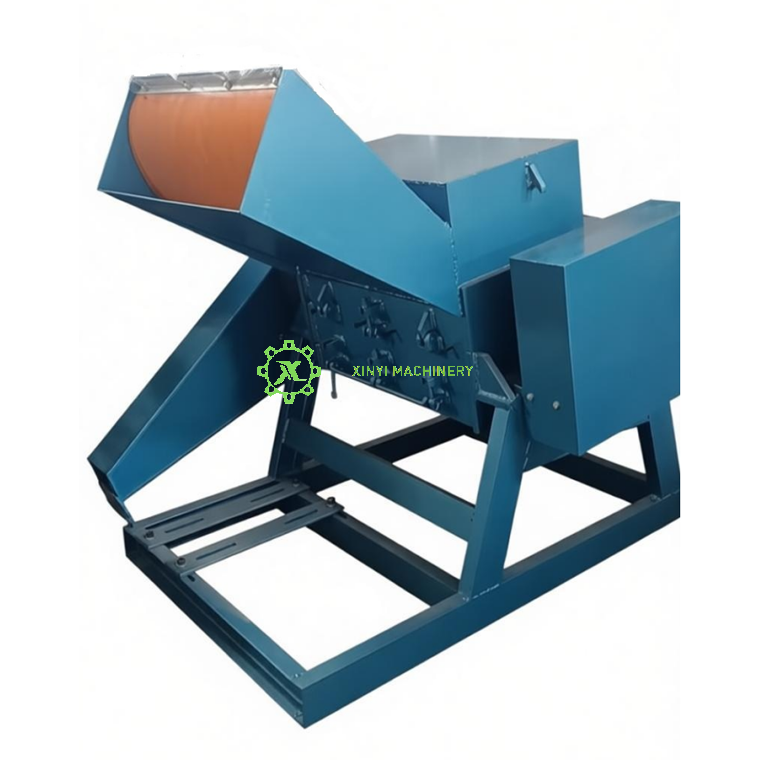

A Crushing Machine for Waste Plastic (often called a plastic crusher, plastic granulator, or size reduction machine) is a core piece of industrial equipment designed to break down bulky, discarded plastic items into smaller, uniform fragments or "flakes." This process is the essential first step in most plastic recycling and reprocessing operations.

Here’s a detailed breakdown:

1. Primary Purpose & Function

The machine's core function is size reduction. It transforms large, irregular, and difficult-to-handle plastic waste (like bottles, pipes, containers, film, and purgings) into consistently small pieces. This achieves several critical goals:

· Enables Efficient Recycling: Small flakes are easier to wash, dry, sort, and feed into extruders to make new plastic pellets.

· Reduces Volume: Significantly decreases storage and transportation costs.

· Prepares for Further Processing: Creates a homogeneous material flow for compounding, pelletizing, or direct molding.

· Handles Reject/Scrap Plastic: Recycles in-house production waste (sprues, rejected parts) immediately, saving material costs.

2. Key Components & How It Works

A standard plastic crusher operates on a shearing and slicing principle. The main components are:

· Hopper: The entry point where waste plastic is fed, often designed to guide material safely into the cutting chamber.

· Cutting Chamber: The heart of the machine, containing:

o Rotor: A rotating shaft with multiple fixed or reversible cutting blades (rotor blades).

o Bed Knives (Stator Knives): Fixed blades mounted on the chamber's interior, creating a scissor-like action against the rotor blades.

· Screen (Sieve): A perforated metal grid installed at the bottom of the cutting chamber. It controls the final particle size—flakes remain in the chamber until they are small enough to pass through the screen holes.

· Drive System: A powerful electric motor (with a gearbox for high-torque models) that drives the rotor at high speed.

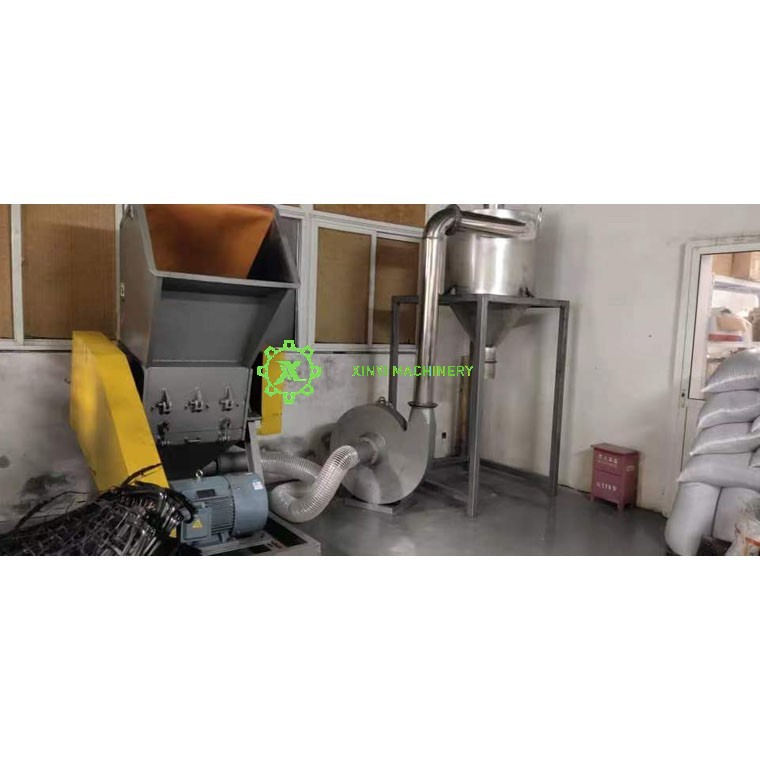

· Discharge System: Often a blower or screw conveyor that moves the crushed flakes out of the machine to a collection bin or the next stage.

· Frame & Safety Features: A sturdy steel frame with safety interlocks that prevent operation when the chamber is open.

Basic Process: Plastic waste is fed into the hopper. The rotating rotor blades grab the material and, in cooperation with the stationary bed knives, shear and cut it repeatedly. The fragments circulate within the chamber until they are small enough to pass through the screen and are discharged.

3. Types of Crushing Machines for Plastic

Different plastics and shapes require specialized crusher designs:

· Standard Plastic Granulator/Crusher: For general-purpose crushing of injection molding sprues, purgings, and small parts.

· Central/Plastic Shredder Crusher Combo: Often a two-stage system: a heavy-duty shredder first tears apart large, bulky items (like pallets, drums), then a crusher/granulator further reduces the pieces into fine flakes.

· PET/PP/PE Bottle Crusher: Designed to handle whole bottles, often with features to manage labels and residual liquid.

· Plastic Pipe Crusher: Specifically built with deep throats and special feed mechanisms to process long HDPE/PVC pipes.

· Plastic Film & Bag Crusher (Agglomerator): Uses a different mechanism (often cutting and melting) to handle lightweight, flexible films that are difficult for standard crushers.

· Heavy-Duty Crusher: For robust materials like plastic lumps, purgings, and thick-walled products.

4. Why It's Essential in the Plastic Industry

For a manufacturer like XINYI MACHINERY, providing these machines is about enabling a circular economy. They are indispensable for:

· Recycling Facilities: The cornerstone of post-consumer plastic recycling lines.

· Plastic Manufacturers (In-House Recycling): Allows immediate reuse of production scrap, dramatically reducing raw material costs.

· Waste Management Companies: To reduce volume and add value to collected plastic waste.

· Environmental Protection: By facilitating efficient recycling, these machines directly reduce landfill use and resource consumption.

In Summary:

A Crushing Machine for Waste Plastic from a supplier like XINYI MACHINERY is not just a grinder; it's a precision-engineered size reduction system. It is the critical first step that makes modern plastic recycling and efficient manufacturing possible, turning problematic waste into a valuable raw material ready for its next life.
