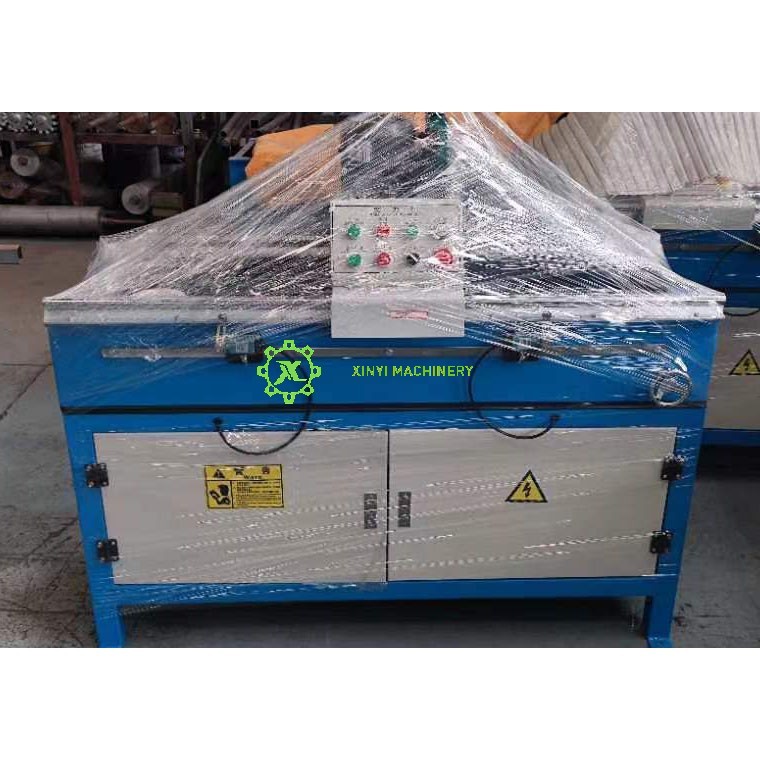

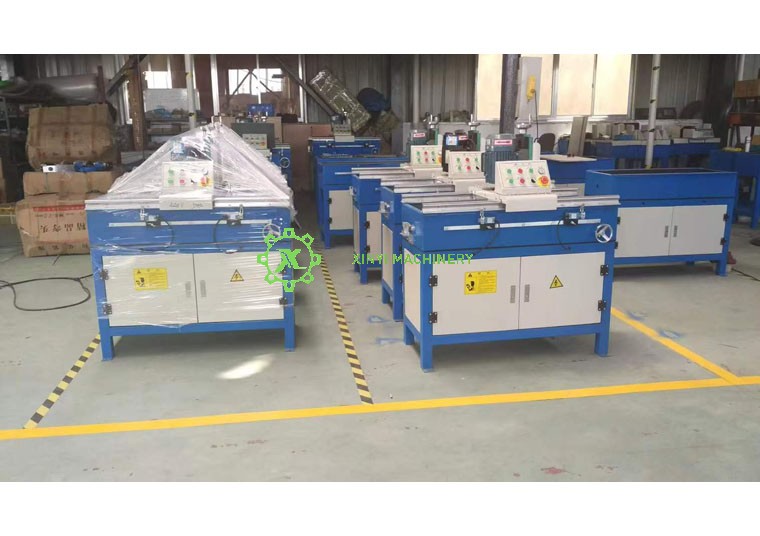

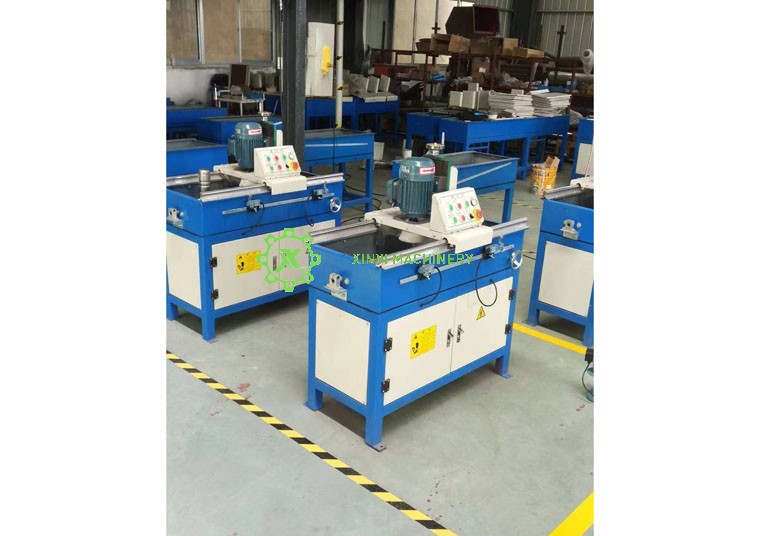

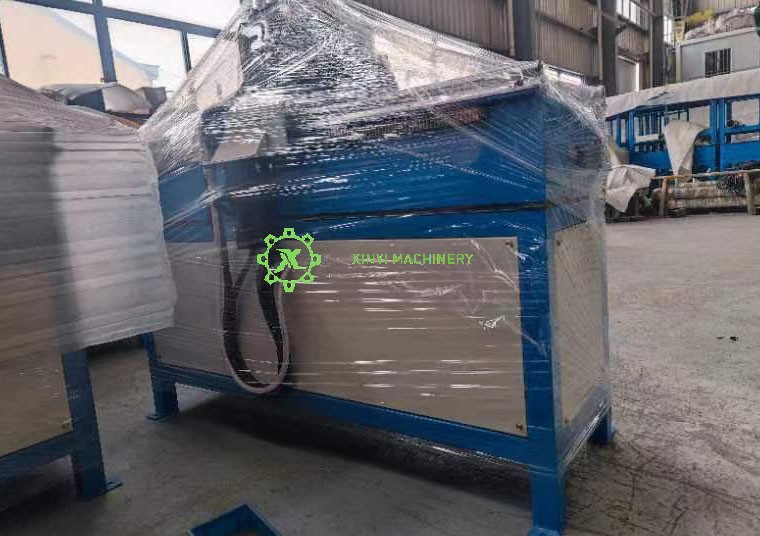

An automatic straight blade grinding machine is a specialized piece of industrial equipment designed to sharpen, resharpen, and maintain the precise cutting edge on straight blades with minimal human intervention. Here's a breakdown of what it is and how it works:
Core Function:
To accurately grind a perfectly straight, sharp, and consistent bevel edge onto long, linear blades.
Key Characteristics & Components:
Automation:
CNC Control: Most modern machines use Computer Numerical Control (CNC) for precise programming of the grinding path, feed rates, grinding depth, and spark-out cycles.
Automatic Wheel Dressing: The machine automatically dresses (reshapes and cleans) the grinding wheel at programmed intervals to maintain its profile and cutting efficiency.
Cycle Automation: The entire grinding process (positioning, grinding passes, wheel dressing, blade flipping for double bevels, measurement, unloading) runs automatically once initiated.
In-Process Measurement: Advanced machines may incorporate probes or laser systems to measure blade thickness, edge geometry, and wear, automatically adjusting grinding parameters for consistency.
Designed for Straight Blades:
Handles blades with a long, linear cutting edge. Common examples include:
Guillotine blades (paper, plastic, metal, textile cutting)
Slitter blades (for converting paper, film, foil)
Shear blades (metal shearing)
Planer/Jointer knives (woodworking)
Industrial knives (printing, packaging, recycling)
Features robust fixtures and magnetic or vacuum chucks specifically designed to securely hold long, thin, straight blades flat and rigid during grinding.
Grinding Mechanism:
Grinding Wheel: Uses precision abrasive wheels (often diamond or CBN for long life, especially on carbide blades) mounted on a high-precision spindle.
Coolant System: Uses flood coolant to cool the blade and wheel, flush away grinding swarf, and prevent thermal damage to the blade edge.
How It Works (Typical Automated Cycle):
Loading: An unsharpened blade is automatically fed onto the precision holding fixture/chuck and securely clamped.
Positioning: The grinding head positions itself at the start point with the correct bevel angle.
Grinding Pass: The grinding wheel moves longitudinally (X-axis) along the entire length of the blade while maintaining the programmed infeed (Y-axis) and bevel angle (A-axis). Multiple passes may occur with decreasing infeed.
Spark-Out: Final passes with minimal or zero infeed to ensure a clean, burr-free edge and perfect flatness.
(Optional) Flip & Grind: If a double bevel is required, the machine automatically flips the blade (or the grinding head repositions) and repeats steps 2-4.
Wheel Dressing: The machine dresses the grinding wheel to restore its profile and sharpness (may occur before grinding a new blade or after a set number).
Unloading: The finished sharp blade is automatically unloaded, and the cycle repeats with the next blade.
Benefits:
High Precision & Consistency: Produces blades with exceptionally consistent edge geometry, sharpness, and straightness, critical for clean cuts.
Increased Productivity: Runs unattended for long periods, processing blades much faster than manual methods.
Reduced Labor Costs: Minimizes the need for skilled grinding operators.
Improved Blade Life: Consistent, optimal grinding extends blade life between sharpenings.
Enhanced Safety: Removes operators from direct contact with grinding processes.
Repeatability: CNC programs store settings for different blade types, ensuring identical results every time.
Applications:
Widely used in industries that rely heavily on precision straight blades:
Paper & Pulp Converting
Plastic Film & Foil Converting
Metal Fabrication & Shearing
Printing
Packaging
Textile Cutting
Woodworking (Planer/Jointer knives)
Recycling
In essence: It's a sophisticated, computer-controlled machine that automates the precise and efficient sharpening of long, straight industrial cutting blades, ensuring high quality and maximizing productivity.
